Hi-Tech Ultraviolet Curing Repair System

Customization:	Available
Type:	Pipe Rehabilitation
Small Light Holder:	Adapted Pipe Diameter:200-600mm

Basic Specifications

Model NO.

X120UV

Big Light Hoder

600-1600mm

Binding Head

Stainless Steel

Transport Package

Plywood Case

Main Control Size

1700mm*750mm*1270mm

Trademark

easysight

Production Capacity

50 Sets / Month

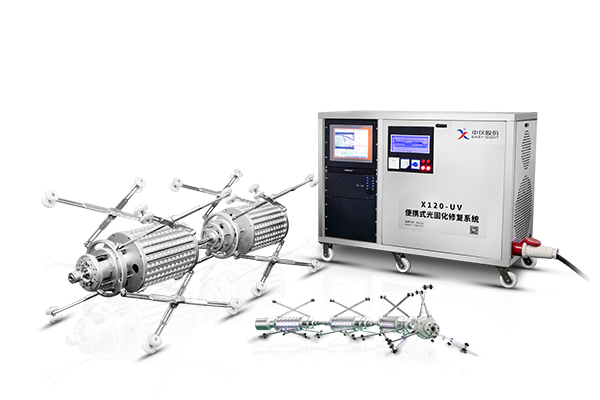

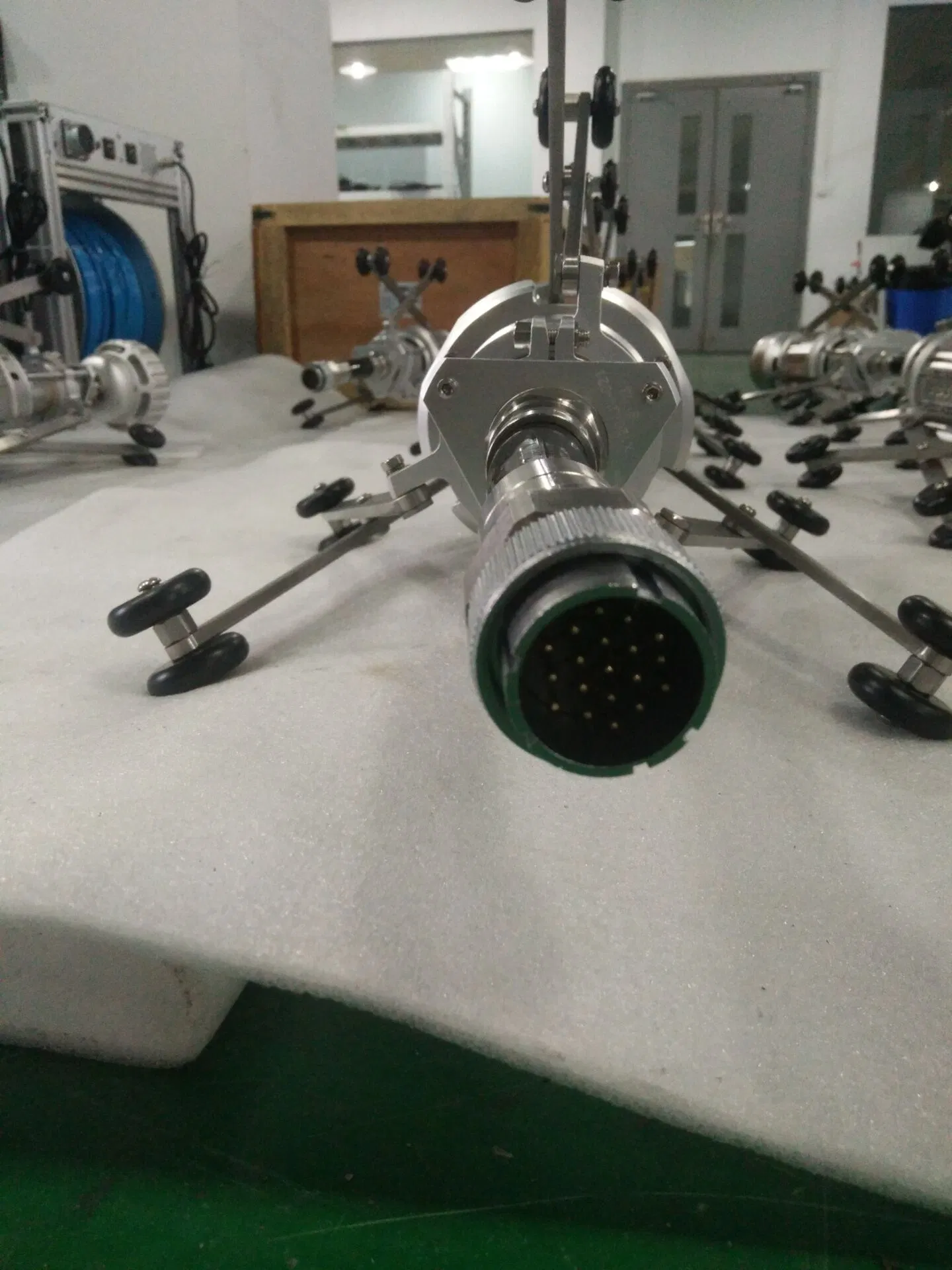

Portable Photocuring Repair System (X120-UV)

The X120-UV portable photo-curing repair system consists of a mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens, and auxiliary tools. It is specifically designed for trenchless repair works of municipal pipe networks, supporting diameters from DN200 to DN1600.

Product Advantages

🚀 High Efficiency

Short curing time and high operational speed for rapid pipeline restoration.

📦 Portability

Integrated design with high system integration; powered solely by a generator.

🌱 Energy Saving

LED curing technology ensures low energy consumption and zero pollution.

📊 Stability

Digital transmission with real-time monitoring and automatic stabilization.

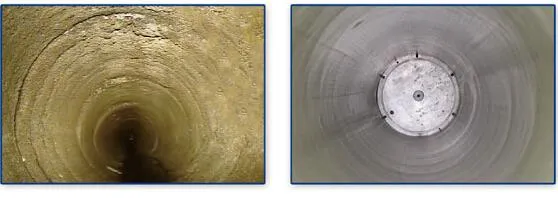

Repair Results: Precise & Controllable

Technical Parameters

Component	Quantity	Technical Parameters & Instructions

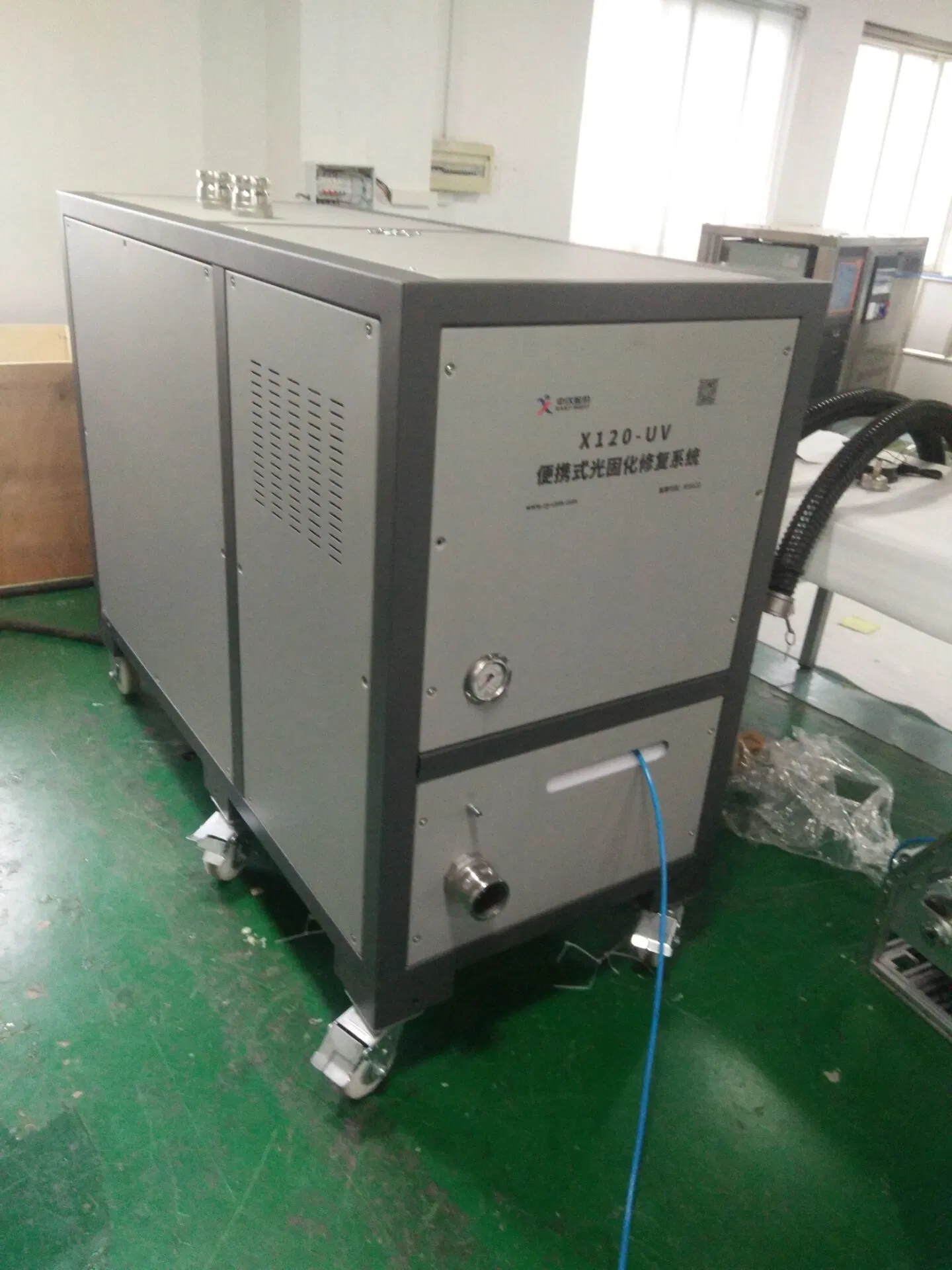

Mobile Control System	1 Unit	380V input; 15.1" touch screen; 1920*1080P image acquisition; 150m standard cable; weight 320kg.

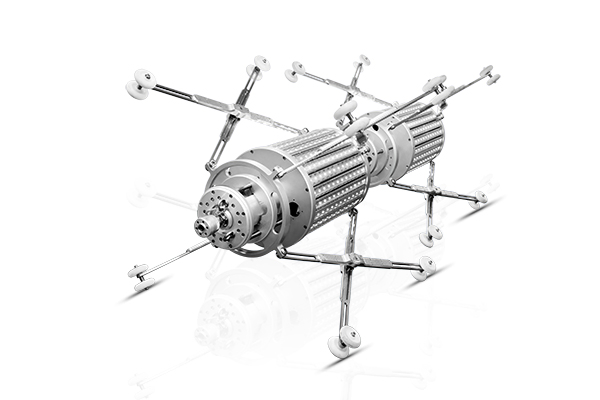

Small Lamp Holder	4 Sections	Adaptive DN200-DN600; LED light source (50,000h); built-in temperature & pressure sensors.

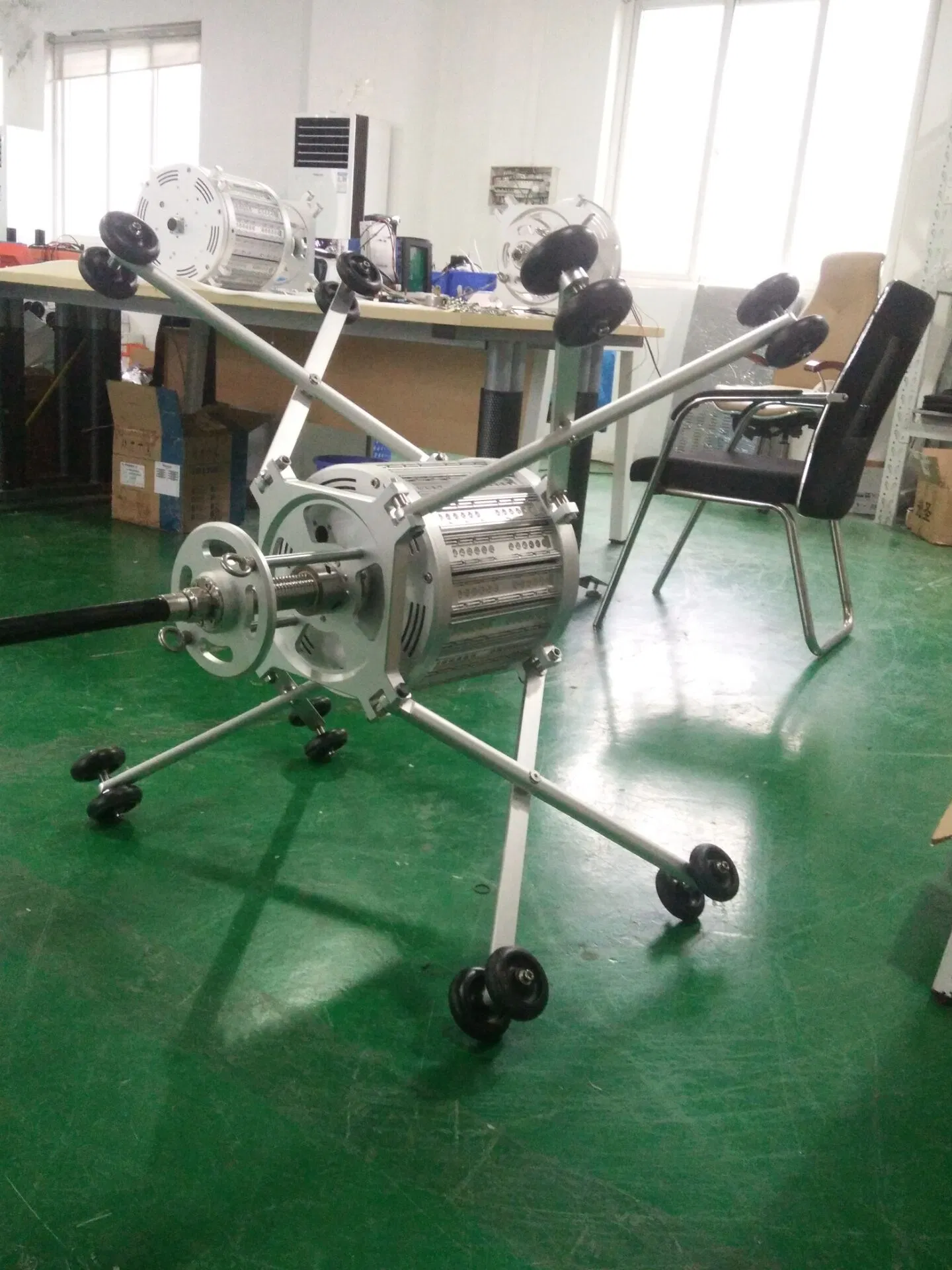

Large Lamp Holder	2 Sections	Adaptive DN600-DN1600; Electric adjustment for pipe diameter; LED light source.
Prick-head Set	18 Pieces	Stainless steel; sizes ranging from DN200 up to DN1600; equipped with sealing rings.
Direct View Lens	1 Unit	IP68 protection; 4 million pixels CMOS; built-in air pressure sensor; 4x 3W LED floodlights.

Exhibitions & Logistics

Our Service Commitment

🛡️ 12-Month Warranty: Comprehensive warranty covering components from the date of delivery, with lifelong maintenance support.

🛠️ Technical Support: Expert guidance on pipeline detection, maintenance, and environmentally friendly repair solutions.

✅ Quality Assurance: Every machine undergoes strict testing protocols to ensure optimal performance before dispatch.

🌍 OEM & Language: Support for OEM branding and professional English-speaking sales teams for seamless communication.

Frequently Asked Questions

What is the standard packaging for the system?

The system is packed in a standard plywood case with foam padding to prevent shaking and a thick plastic bag for waterproofing during transit.

Can I install and run the machine by myself?

Yes. Most components are pre-installed. We provide detailed training videos and English operational manuals to help you master the operation.

What range of pipe diameters does this system support?

The X120-UV system is versatile, covering pipe diameters from DN200 all the way up to DN1600 using different lamp holder configurations.

How long is the service life of the LED light source?

The LED curing light source is designed for high durability, with an estimated service life of approximately 50,000 hours.

What should I do if the machine encounters a fault?

Please contact our support team immediately. We respond within 24 hours to provide professional troubleshooting and solutions.

Is the system waterproof for underground use?

Yes, the camera system is rated IP68, and the cables are made of polyurethane sheath, making them waterproof, acid-alkali resistant, and corrosion-resistant.
