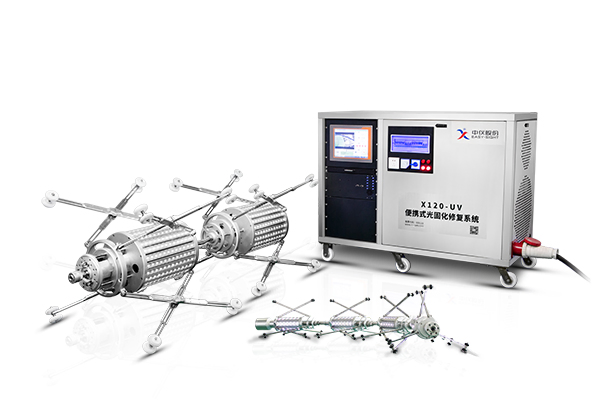

The X120-UV portable photo-curing repair system consists of a mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens, and auxiliary tools. It is mainly applicable to trenchless repair works of municipal pipe networks, with repair pipe diameters ranging from DN200 to DN1600.
Integrated design, high integration, power supply by generator only.
Short curing time and high operational speed.
LED curing, low energy consumption and no pollution.
Digital transmission, real-time monitoring, and automatic stabilization.
| Component | Qty | Technical Specifications |
|---|---|---|
| Mobile Control System | 1 pc | Integrated control, lamp rack, 380V interface, 15.1" touch screen, dual-way HD video (1920*1080P), 150m cable. |

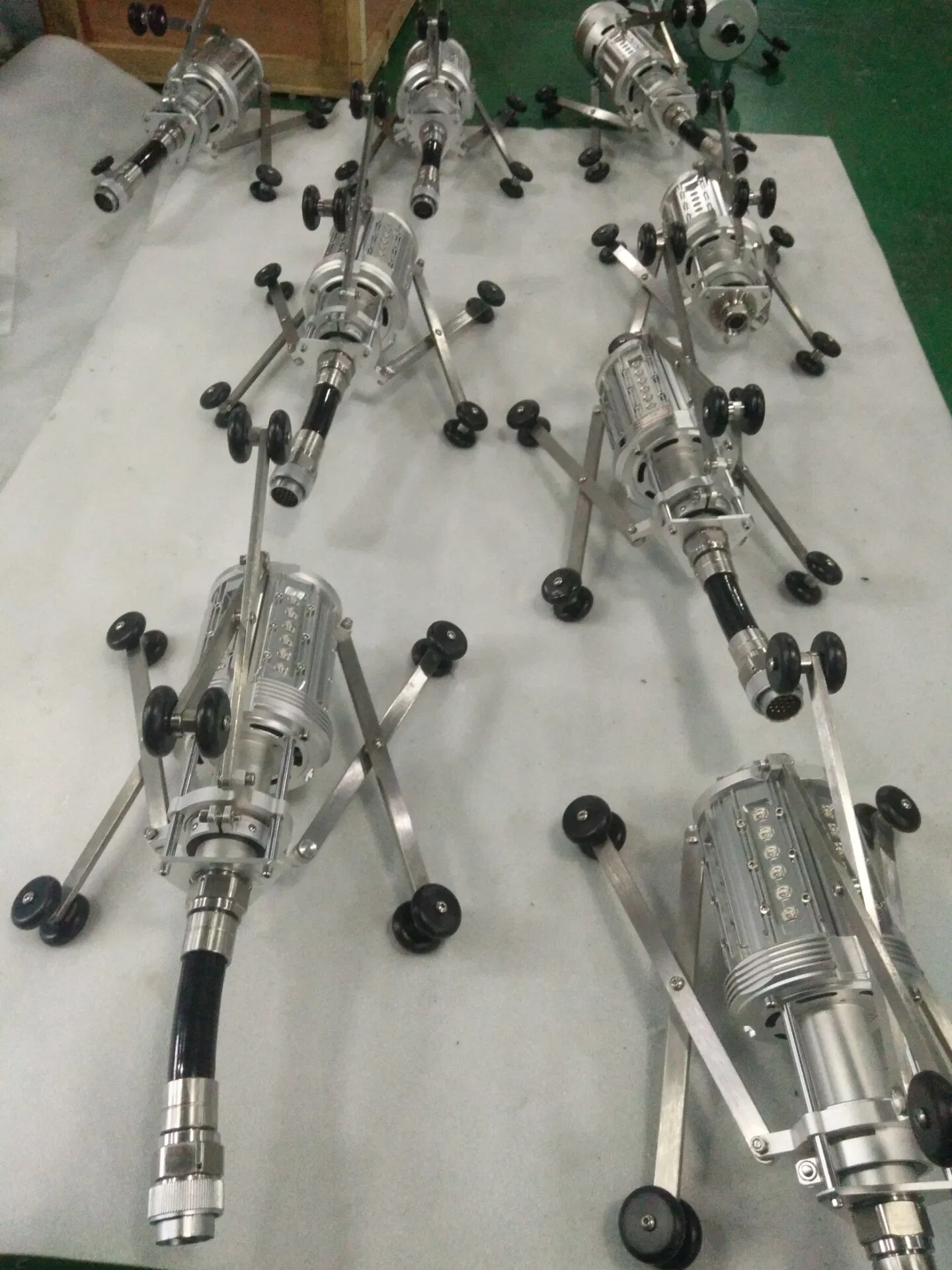

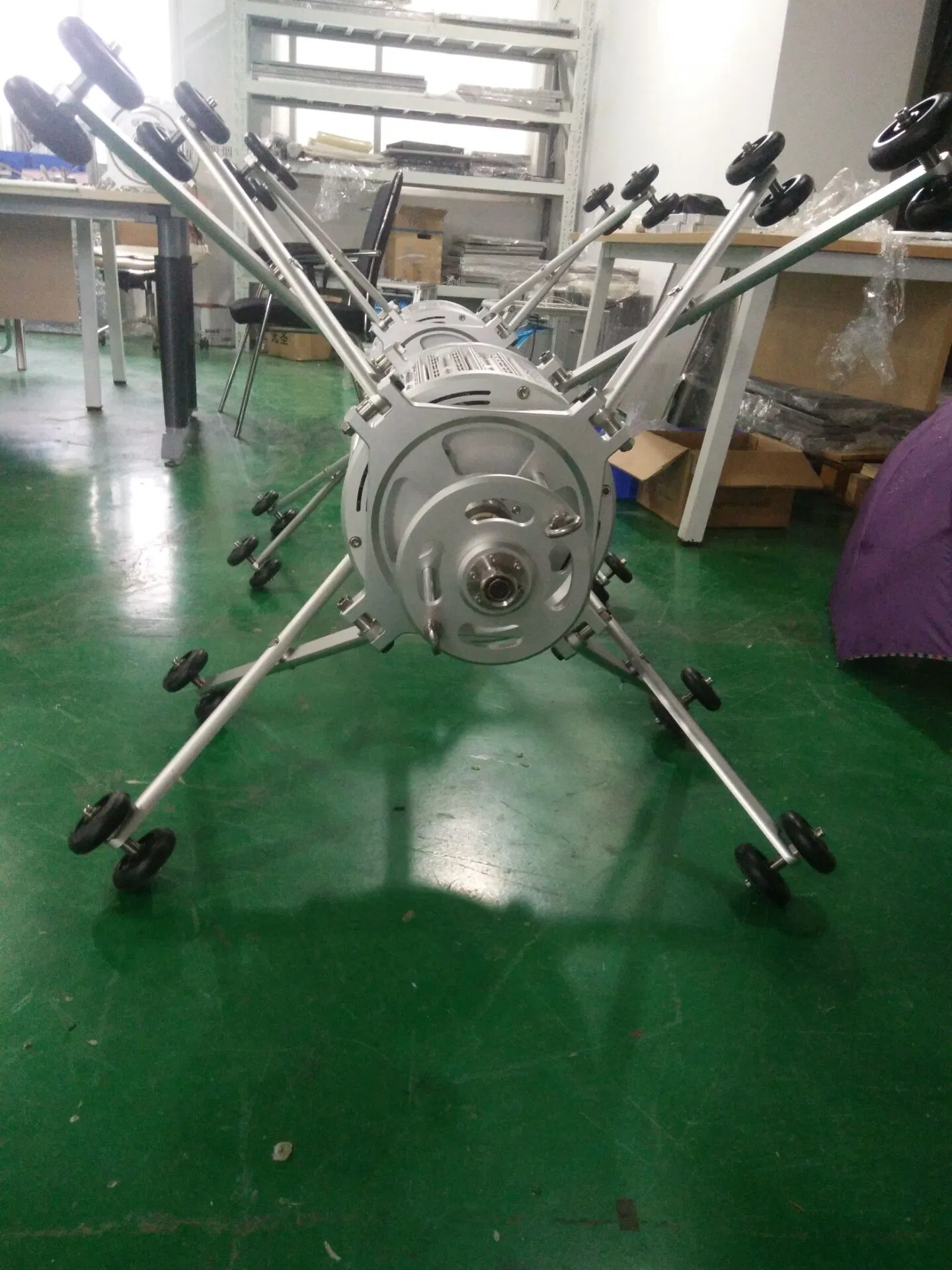

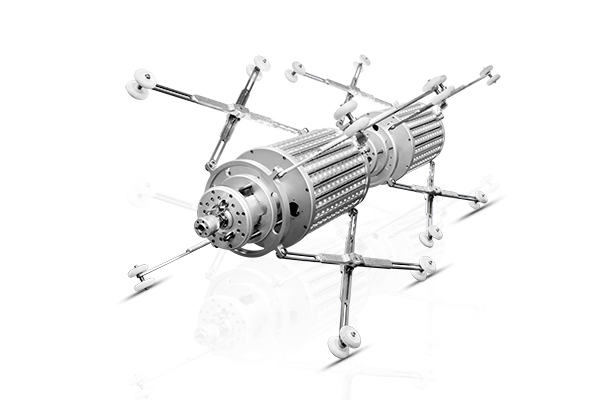

| Small Lamp Holder | 4 sections | Adaptive DN200-DN600; LED light source (50k hrs); integrated temp/pressure/laser sensors. |

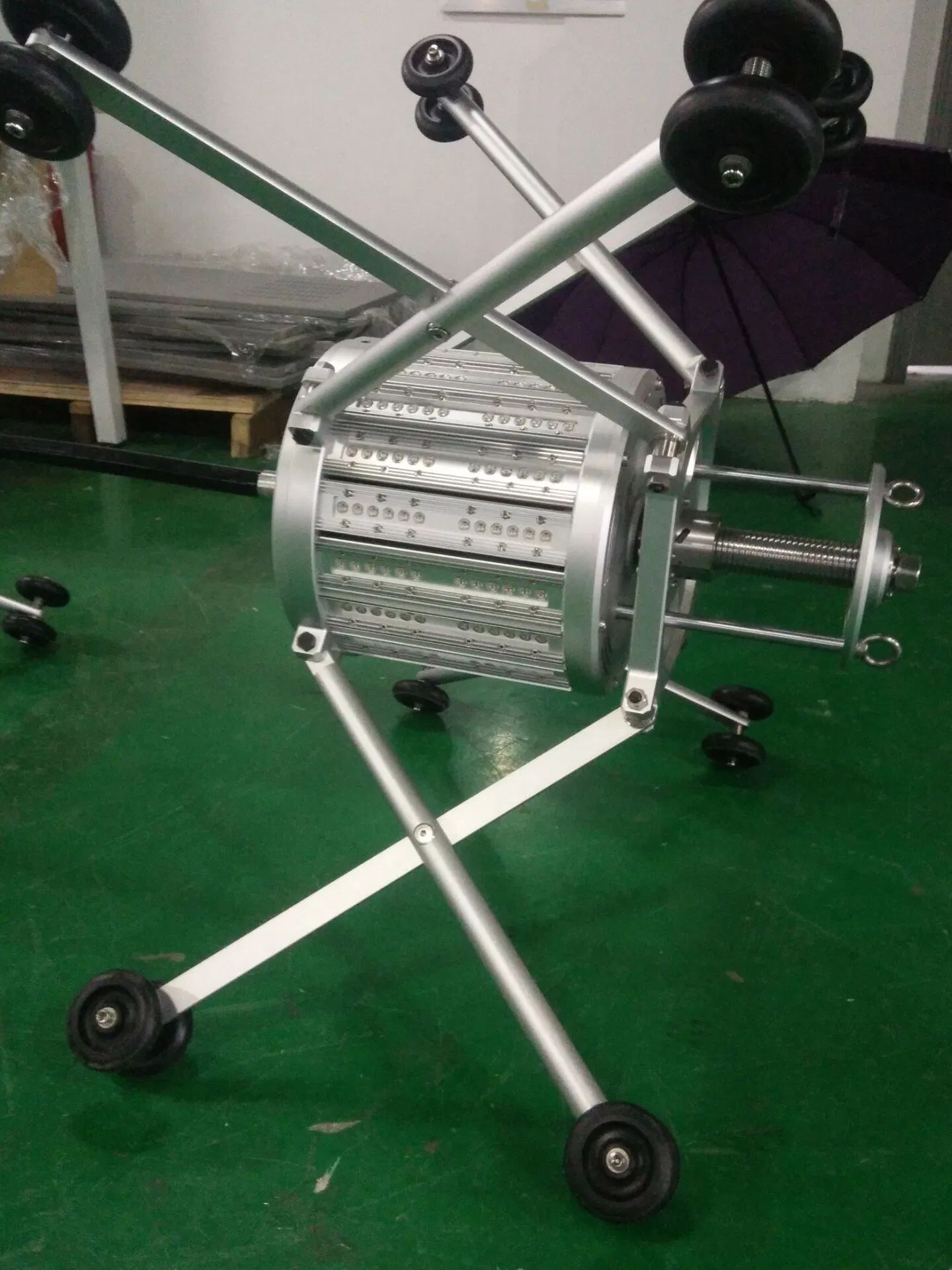

| Large Lamp Holder | 2 sections | Adaptive DN600-DN1600; Electric adjustment; LED source; real-time monitoring. |
| Prick-head Sets | 18 pcs | Stainless steel; Sealing rings for voltage stabilization; sizes from DN200 to DN1600. |
| Direct View Lens | 1 pc | IP68; 4MP CMOS; 4x 3W LED; sensitivity 0.1Lux; weight 0.5kg. |
| Rotating Lens (Opt) | 1 pc | 360° rotation; 10x optical zoom; 4MP CMOS; IP68 protection. |
Warranty Policy: 12 months from arrival at destination port with lifelong maintenance support.
Technical Help: Efficient and environmentally friendly drainage network solutions and repair services.
Quality Assurance: Every machine undergoes strict testing before packaging to ensure perfect functionality.
Training: English operational manuals, CDs, and free on-site factory training provided.
Lifelong Service: Spare parts supplied at competitive prices for all sold units.
OEM: Custom brand logo printing available on request.
A: We use standard plywood cases. The machine is wrapped in a thickened plastic bag for waterproofing, surrounded by foam to prevent shaking, and encased in a sturdy wood craft exterior.
A: No. Our packaging accounts for all damage factors to ensure safety. Our shipping agents are highly experienced in safe transportation, ensuring your parcel arrives in good condition.
A: Most components are pre-installed before shipping. For setup, we provide detailed training videos and English user manuals. Most customers are able to learn the operation independently.
A: The system is designed for trenchless municipal pipe network repair with adaptive diameters ranging from DN200 up to DN1600.
A: If you encounter issues, please contact our support team immediately. We respond within 24 hours to provide professional guidance and solutions.
A: Yes, the system features a high-definition imaging system (1920*1080P) and various sensors to monitor temperature, pressure, and speed during the entire curing process.
