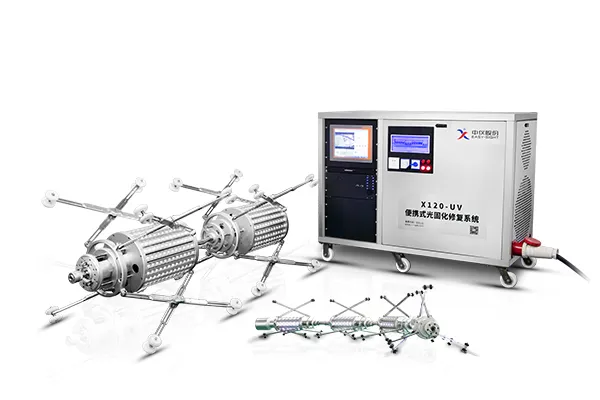

The X120-UV portable photo-curing repair system consists of a mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens, and auxiliary tools. It is primarily designed for trenchless repair works of municipal pipe networks, supporting pipe diameters from DN200 to DN1600.
Integrated design with high integration; powered by generator only.
Features short curing time and high operational speed.
LED curing technology with low energy consumption and zero pollution.
Digital transmission with real-time monitoring and automatic stabilization.

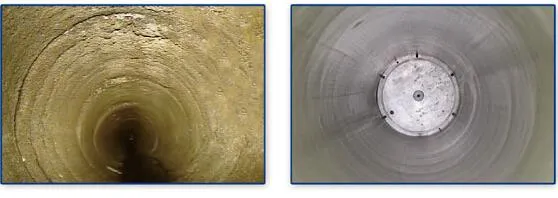

Comparison of repair results: Precise, efficient, controllable
| Component Name | Qty | Technical Parameters and Instructions |
|---|---|---|
| Mobile Control System | 1 pc | Integrated control system, lamp rack, power supply, blast system, and cable tray; 380V input; 15.1 inch touch screen; digital image acquisition (1920*1080P); 150m standard cable; weight ~320kg. |

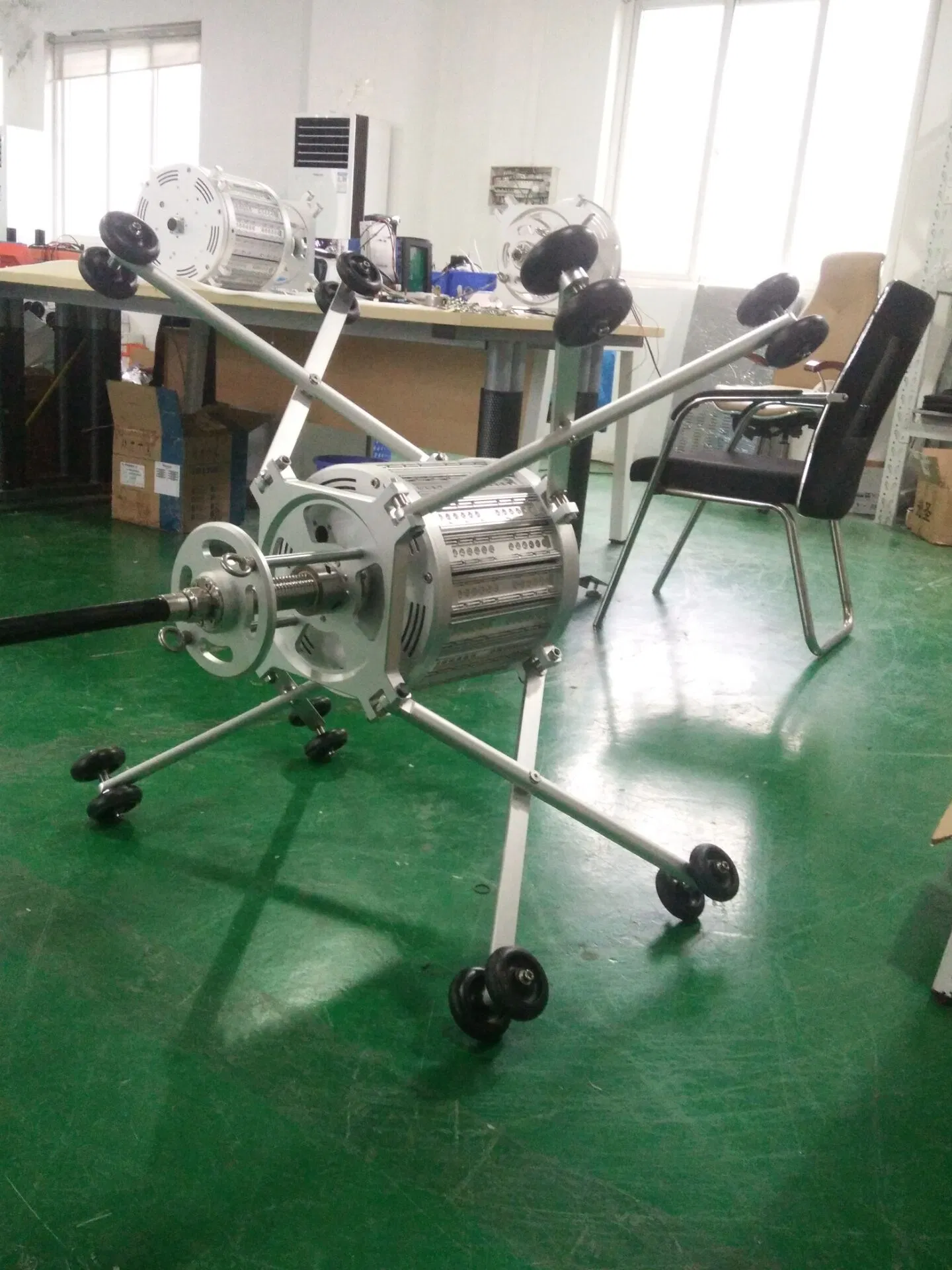

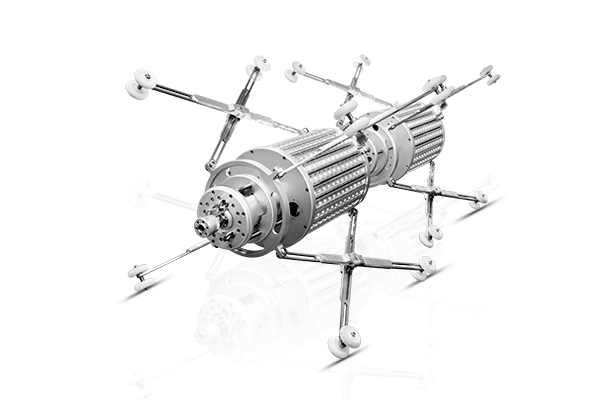

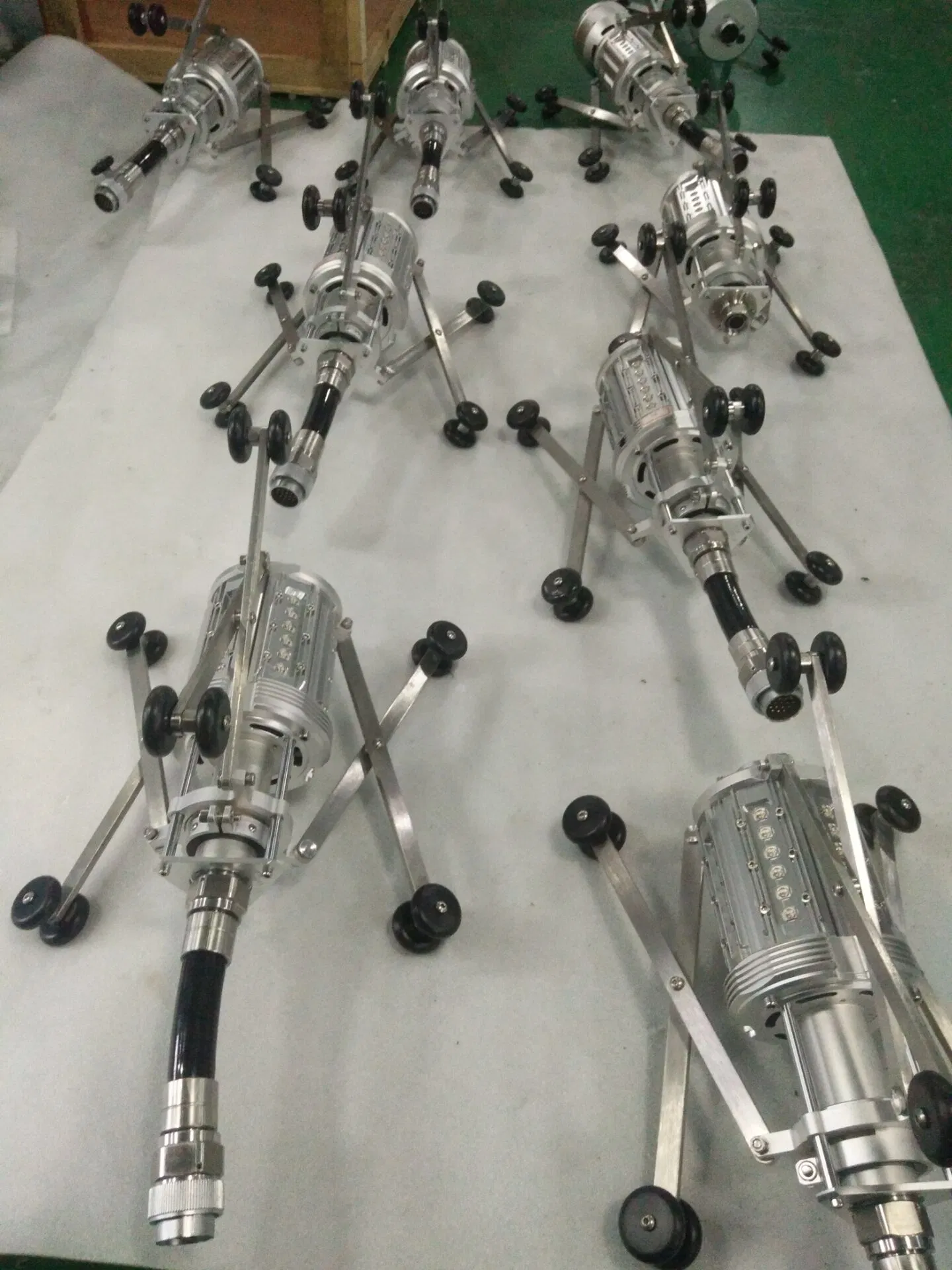

| Small Lamp Holder | Section 4 | Adaptive pipe diameter: DN200-DN600; LED light source (50,000h life); real-time temperature, pressure, and laser ranging sensors. |

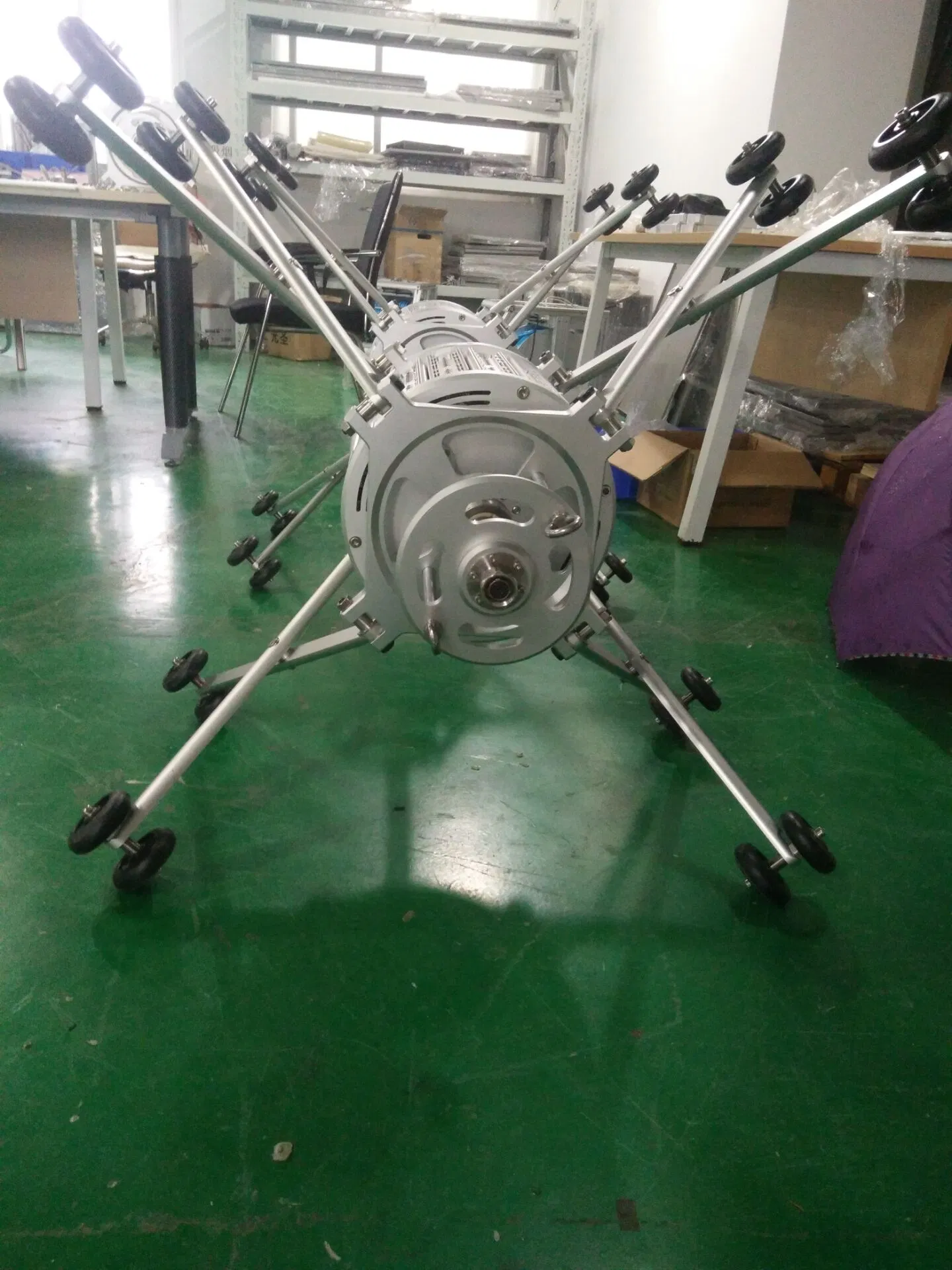

| Large Lamp Holder | Section 2 | Adaptive pipe diameter: DN600-DN1600; Electric adjustment for diameter; LED light source; real-time monitoring. |
| Prick-heads | 18 pcs | Stainless steel material; equipped with sealing rings. Includes DN200-DN600 (10pcs) and DN800-DN1600 (8pcs). |
| Direct View Lens | 1 pc | IP68 protection; 4 million pixels CMOS; viewing angle 6.7°-68°; 0.1Lux sensitivity. |
| Rotating Lens (Optional) | 1 pc | Electric 360° unlimited rotation; 10x optical zoom; automatic focusing; IP68 waterproof. |
