Complete Repair The Damage Pipe

Customization:	Available
Diameter:	>720mm
Material:	Underwater Pipe

Send Inquiry

Product Description

Basic Specifications

Model NO. X120D

Small Light Holder Pipe Diameter: 200-600mm

Big Light Holder 600-1600mm

UV Binding Head Stainless Steel

Temperature Class Medium Temperature Piping

Standard ASTM, GB, API, DIN, JIS

Medium Liquid

Cross-Section Round

Production Capacity 50 Sets Per Month

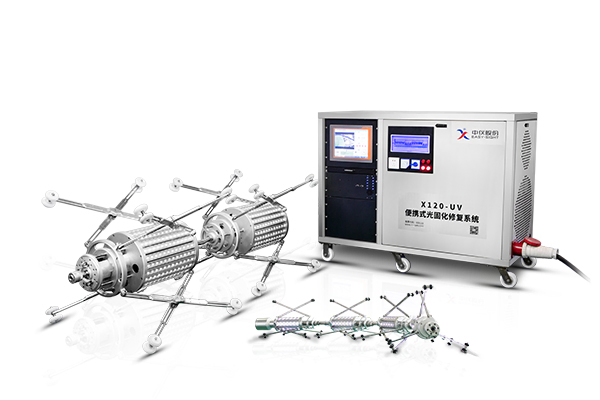

Portable Photocuring Repair System (Model: X120-UV)

The X120-UV portable photo-curing repair system is a professional trenchless solution designed for municipal pipe networks. It consists of a mobile control system, transmission cable, ultraviolet lamp holders, high-definition lens, and specialized auxiliary tools. It is primarily applicable for pipe diameters ranging from DN200 to DN1600.

🚀

Portability

Integrated design with high integration, powered by a standard generator.

⏱️

High Efficiency

Short curing times and rapid operational speeds for pipeline restoration.

🌱

Energy Saving

LED-based curing technology with low energy consumption and zero pollution.

📊

Stability

Digital transmission with real-time monitoring and automatic stabilization.

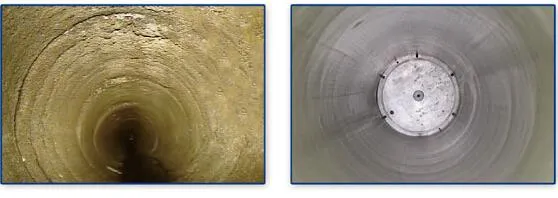

Repair Result Comparison

Precise, efficient, and controllable results for damaged pipes.

Technical Parameters

Component	Quantity	Technical Parameters & Instructions
Mobile Control System	1 Unit	Integrated control system, lamp rack, power supply, blast system, and 150m cable tray. Features 15.1" touch screen, 380V input, and industrial control computer. Supports real-time image acquisition (1080P) and automatic pressure regulation.

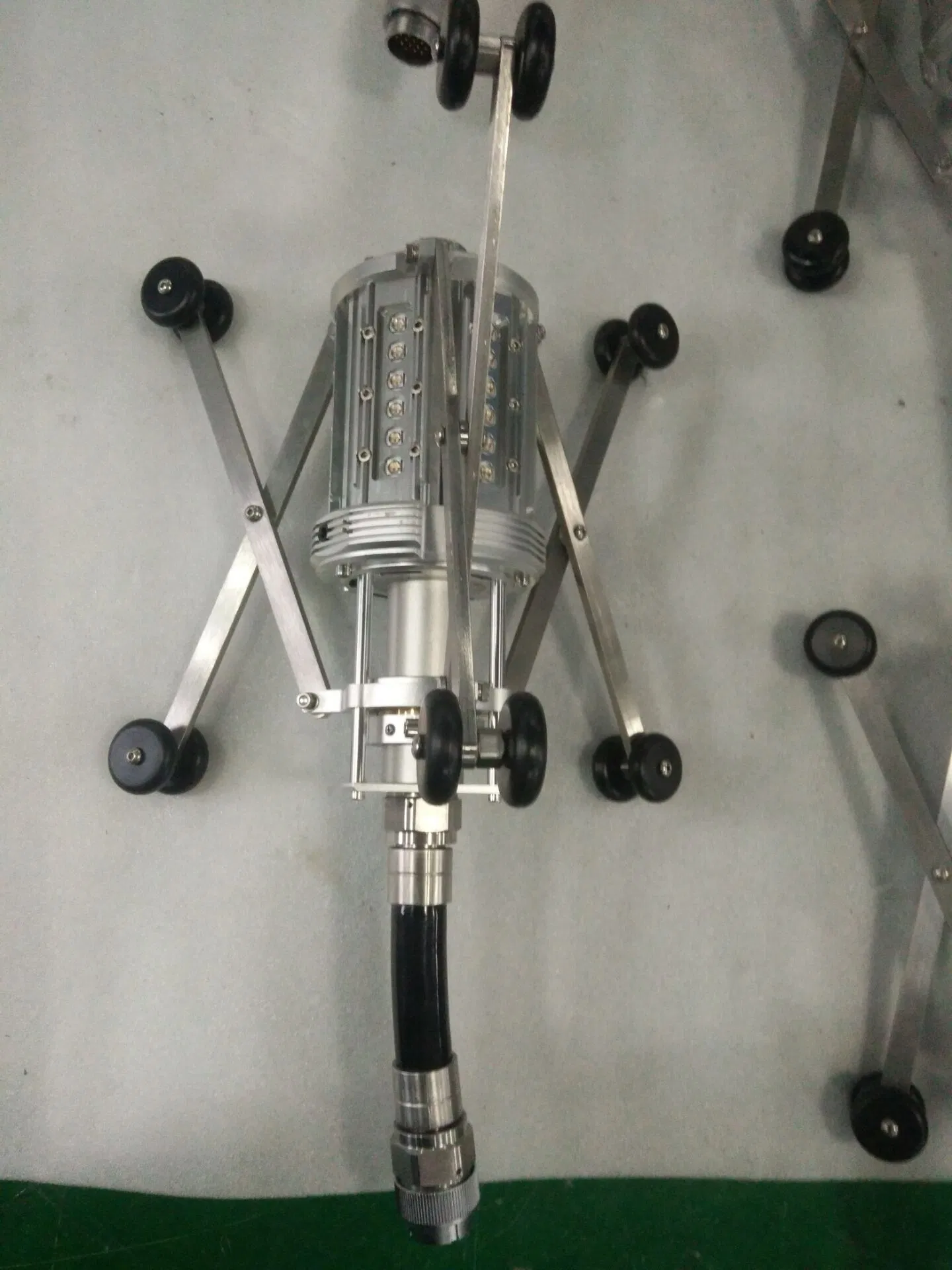

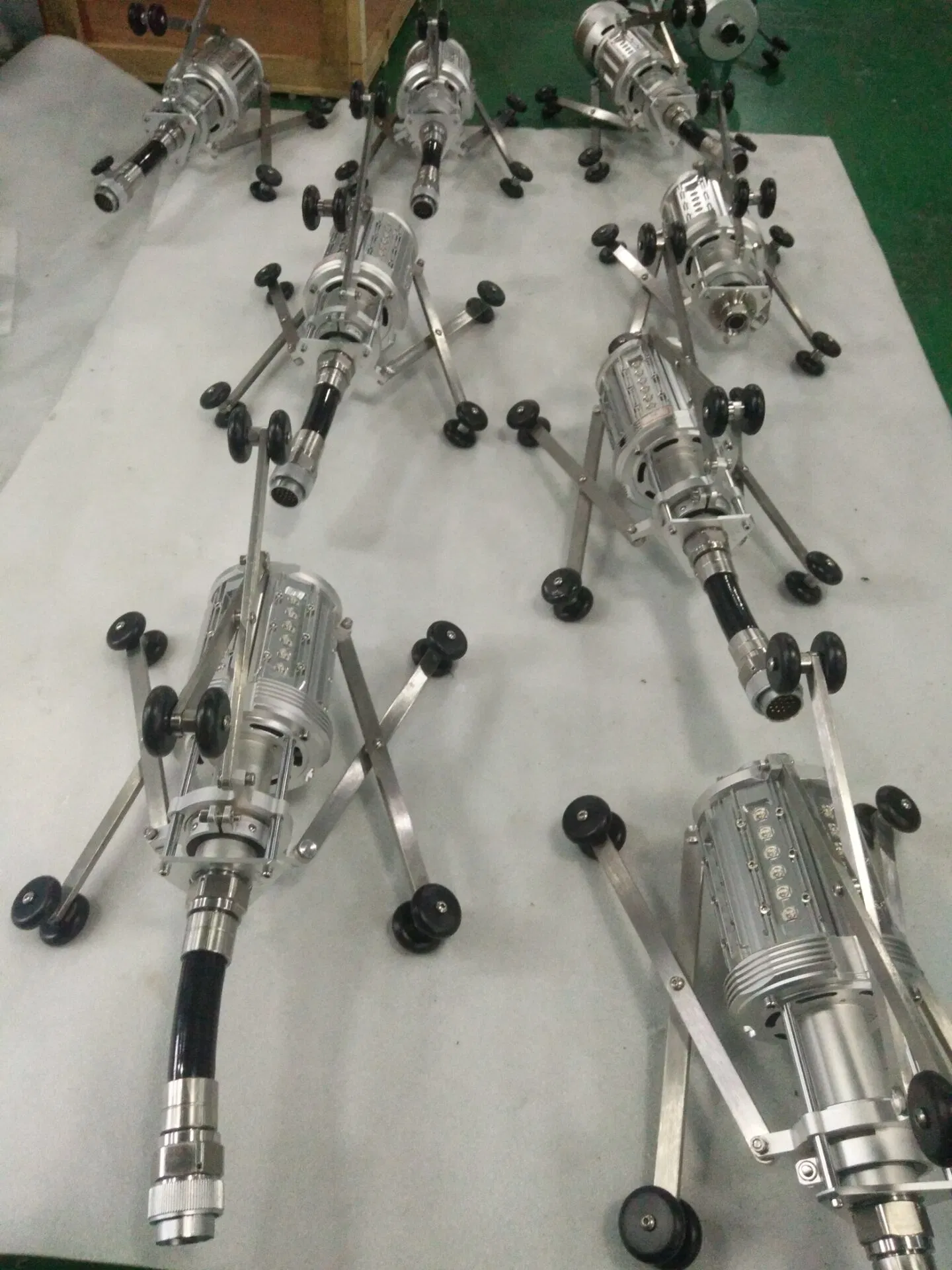

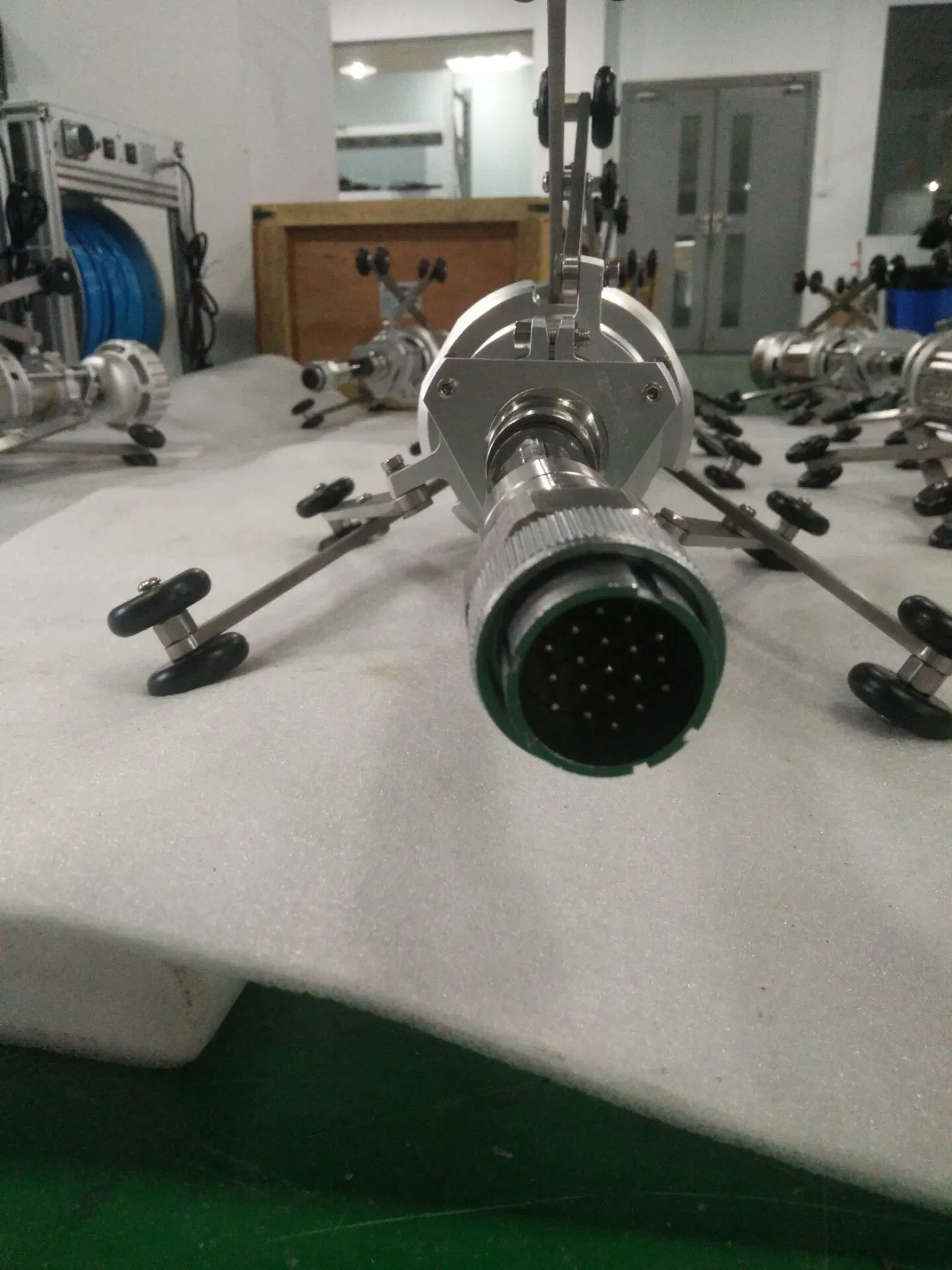

Small Lamp Holder	4 Sections	Adaptive diameter DN200-DN600. Features LED light source (50,000h life), temperature/pressure/laser sensors for real-time process monitoring. Manual adjustment.
Large Lamp Holder	2 Sections	Adaptive diameter DN600-DN1600. LED light source. Includes sensors for temperature and pressure. Electric adjustment for diameter.
Direct View Lens	1 Unit	IP68 protection, 4 million pixels CMOS, 4x 3W LED floodlights. Working temperature -10ºC to 50ºC.
Rotating Lens (Optional)	1 Unit	IP68 protection, 360° radial rotation, tilt 2x135°. 10x optical zoom, automatic focusing, and 4 million pixels.

Exhibition & Quality Assurance

Our Services

✅ After-Service: Advanced equipment and detection methods ensure satisfactory returns and professional support.

✅ Warranty: 12-month warranty from arrival date at destination port with lifelong maintenance support.

✅ Quality Control: Every machine is strictly checked and tested before packaging to ensure perfect operation.

✅ Training: Detailed operational manuals and English training materials are provided. Free technical training is available.

Packing & Shipping

Frequently Asked Questions

What is the standard packaging for the repair system?

We use standard plywood cases. The machine is protected by a waterproof plastic bag, followed by a foam layer to prevent shaking, and finally secured in a wooden craft case for export.

How do I install and operate the equipment?

The system is pre-installed before shipping. We provide detailed training videos and English user manuals. Most customers can operate the machine successfully through these materials.

What is the warranty period for the X120-UV system?

We provide a 12-month warranty starting from the date the equipment reaches the destination port, along with lifelong technical service and parts supply.

What should I do if the machine encounters a malfunction?

If any issues arise, please contact our technical support team immediately. We respond within 24 hours to provide solutions and ensure minimal downtime for your projects.

What pipe diameters can this system repair?

The X120-UV is highly versatile, supporting trenchless repairs for pipe diameters ranging from DN200 up to DN1600 using different lamp holder sections.

Is the system energy efficient?

Yes, the system utilizes advanced LED curing technology which consumes significantly less power than traditional methods and provides a service life of up to 50,000 hours.
