Repair of Damaged Leakage Pipelines

Customization:	Available
Small Light Holder:	Adapted Pipe Diameter:200-600mm
Big Light Hoder:	600-1600mm

Send Inquiry

Product Description

Basic Information

Model NO.:

X120UV

UV Binding Head:

Stainless Steel

Transport Package:

Packed in Plywood Case

Specification:

1700mm*750mm*1270mm

Production Capacity:

50 Sets per Month

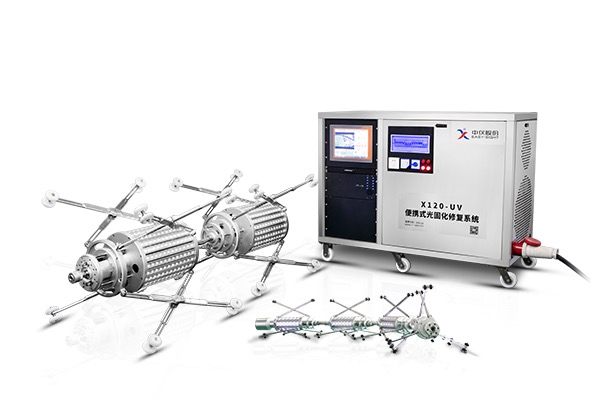

Portable Photocuring Repair System (Model: X120-UV)

Product Profile: The X120-UV portable photo-curing repair system consists of a mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens, and auxiliary tools. It is primarily designed for trenchless repair works of municipal pipe networks, supporting repair pipe diameters from DN200 to DN1600.

Product Advantages

1. Portability Integrated design with high integration; powered efficiently by a generator.

2. High Efficiency Short curing time and high-speed operation for faster repairs.

3. Energy Saving LED curing technology ensures low energy consumption and zero pollution.

4. Stability Digital transmission with real-time monitoring and automatic stabilization.

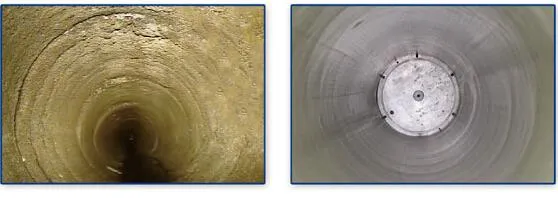

Repair Comparison: Precise, Efficient, Controllable

Technical Parameters

Component Name	Quantity	Technical Parameters and Instructions
Mobile Control System	1 piece	Integrated control system, lamp rack, power supply, blast system, and cable tray. 15.1-inch touch screen, 380V input. 150m standard cable length with high-precision encoder (1mm resolution). Image acquisition: 1920*1080P.

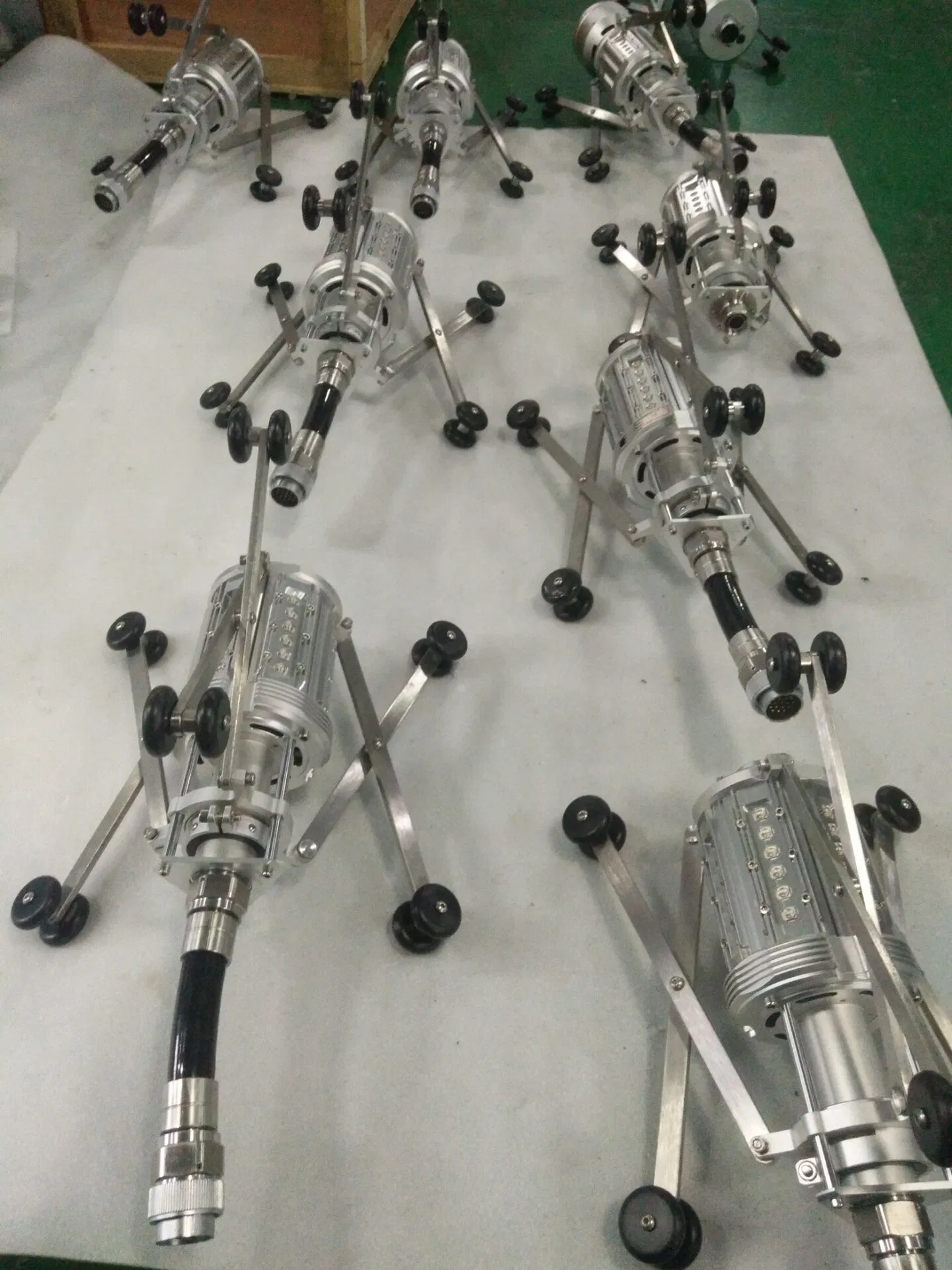

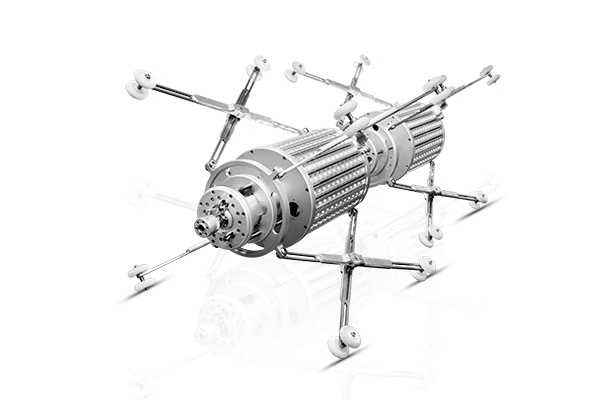

Small Lamp Holder	4 Sections	Adaptive pipe diameter: DN200-DN600. LED light source (50,000h life). Includes temperature, pressure, and laser ranging sensors. Manual adjustment.

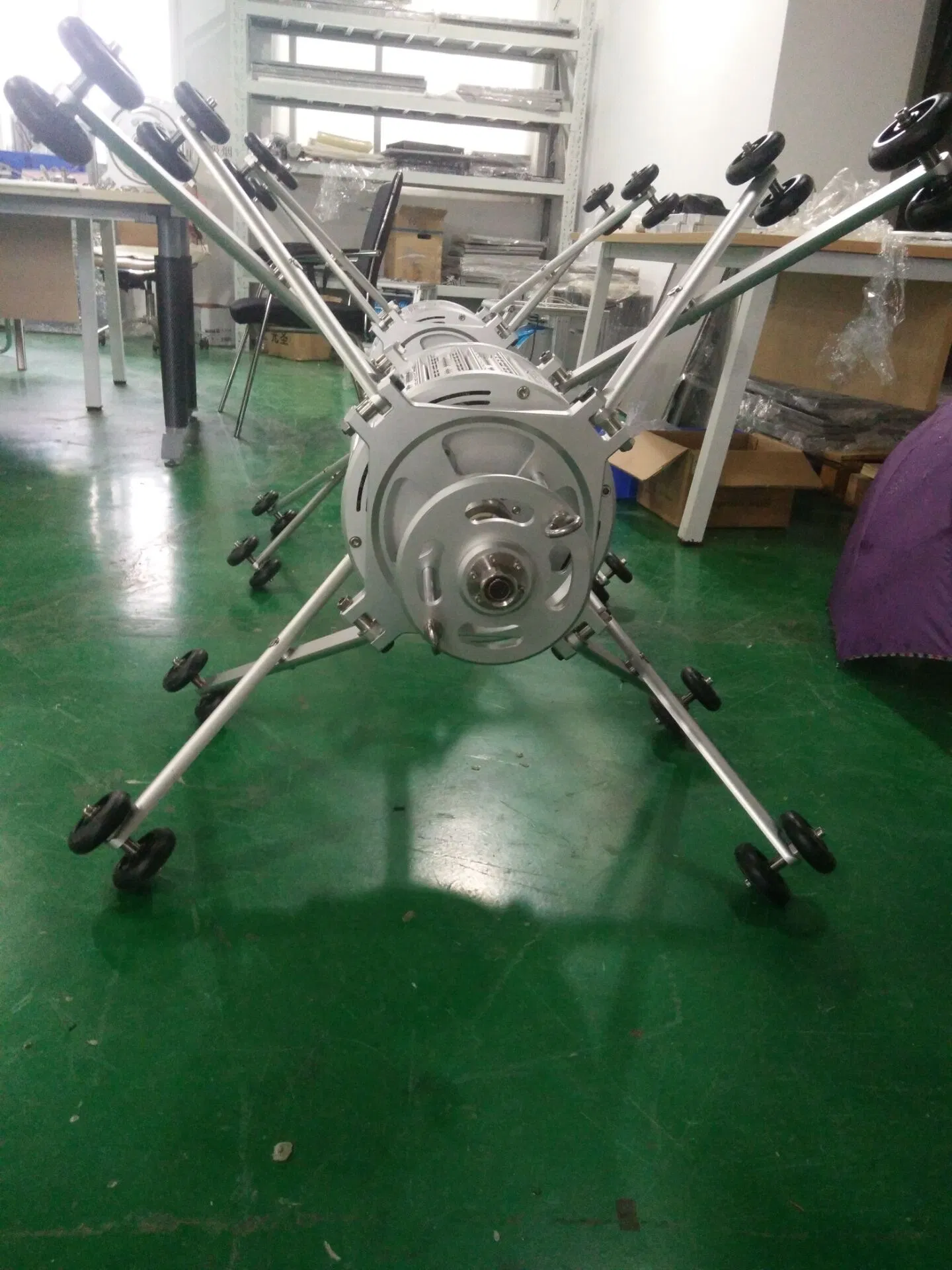

Large Lamp Holder	2 Sections	Adaptive pipe diameter: DN600-DN1600. LED light source (50,000h life). Includes temperature, pressure, and laser ranging sensors. Electric adjustment.
Prick-head (Small/Large)	18 pieces	Stainless steel material with sealing ring for voltage stabilization. Specifications from DN200 to DN1600.
Direct View Lens	1 piece	IP68 protection. 4 million pixels CMOS (2592*1520). 4x 3W floodlight LED. Viewpoint indication via clock direction method.
Rotating Lens (Optional)	1 piece	IP68 protection. Electric rotation (360° radial, 2*135° tilt). 10x optical zoom and automatic focusing.

Exhibition & Quality Assurance

Packing & Shipping

Our Service Commitment

1. After-service

Advanced equipment and stable technology backed by professional experts to ensure satisfactory returns on your investment.

2. Technical Support

Focused on providing efficient and environmentally friendly drainage network solutions including detection and maintenance repair.

3. Warranty Policy

12-month warranty from the date of arrival at the destination port, with lifelong maintenance support.

4. Quality Assurance

Strict quality control protocols; every machine is tested to ensure perfect operation before packaging.

5. Training & Manuals

Detailed English operational manuals and training materials provided. Free professional technical training available upon request.

6. OEM Services

Custom brand logo printing available free of charge for OEM orders.

Frequently Asked Questions (FAQ)

What kind of packaging is used for shipment?

We use standard plywood cases. The machine is protected by foam to prevent shaking, and an inner thickened plastic bag provides waterproofing.

Is the package safe during international transportation?

Yes. Our packaging accounts for all potential damage factors. Our shipping agents are highly experienced in safe transportation to ensure you receive the unit in good condition.

How difficult is the installation and operation?

The machine is largely pre-installed before shipping. We provide detailed training videos and English manuals. Most customers are able to learn the operation independently.

What is the range of pipe diameters this system can repair?

The X120-UV system is highly versatile, supporting municipal pipe diameters ranging from DN200 up to DN1600.

What should I do if the machine encounters a technical issue?

If a problem occurs, please contact our support team immediately. We respond within 24 hours to provide professional guidance and troubleshooting solutions.

What is the lifespan of the LED light source?

The system utilizes high-quality LED light sources with a rated service life of approximately 50,000 hours, ensuring long-term reliability.
