Portable Photocuring Repair System

Customization:	Available
Small Light Holder:	Adapted Pipe Diameter:200-600mm
Big Light Hoder:	600-1600mm

Send Inquiry

Product Description

Basic Information

Model NO.

X120UV

UV Binding Head

Stainless Steel

Transport Package

Packed in Plywood Case

Specification

1700mm*750mm*1270mm

Trademark

easysight

Origin

China

Production Capacity

50 Sets Per Month

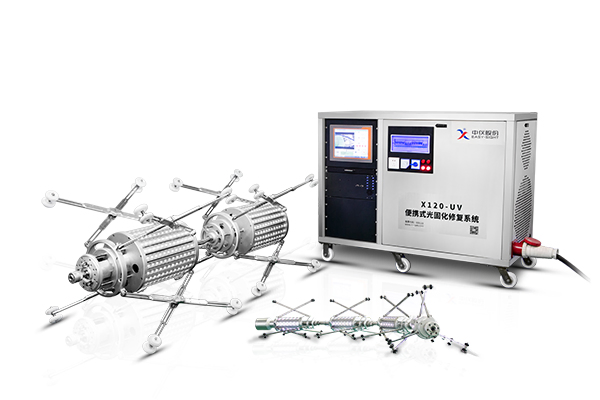

Portable Photocuring Repair System (Model: X120-UV)

The X120-UV portable photo-curing repair system consists of a mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens, and auxiliary tools. It is specifically designed for trenchless repair of municipal pipe networks with diameters ranging from DN200 to DN1600.

Product Advantages

Portability

Integrated design, high integration, power supply by generator only.

High Efficiency

Short curing time and high operational speed.

Energy Saving

LED curing technology, low energy consumption, and zero pollution.

Stability

Digital transmission with real-time monitoring of repair status.

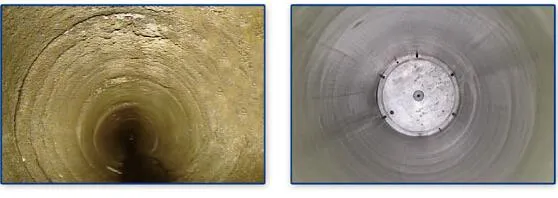

Repair Result Comparison

Precise, efficient, and controllable results for infrastructure maintenance.

Technical Parameters

Component	Quantity	Technical Specifications
Mobile Control System	1 Unit	Integrated control system, lamp rack, power supply, and 150m cable tray. Features 15.1-inch touch screen, real-time image acquisition (1080P), and automatic pressure stabilization.

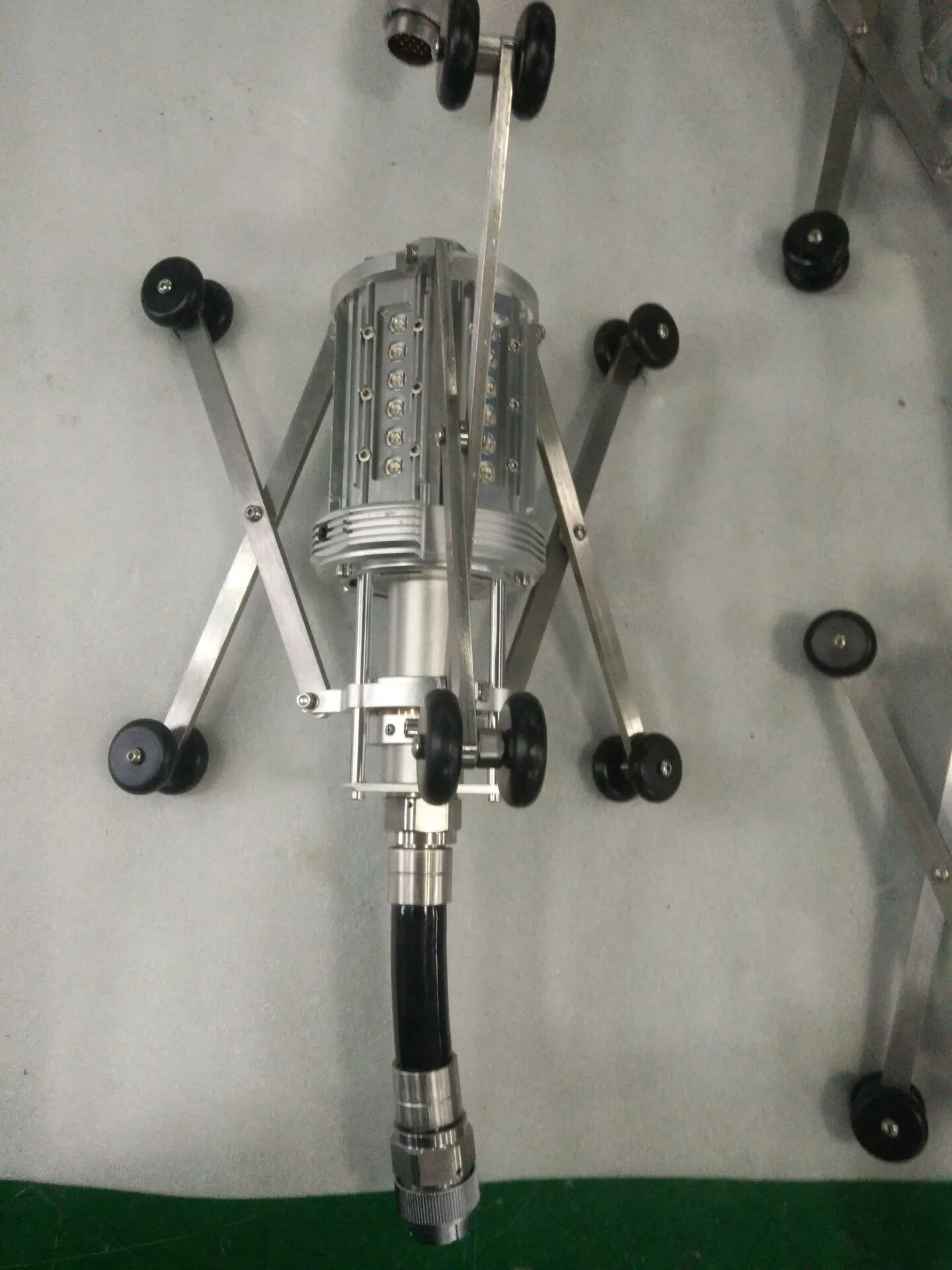

Small Lamp Holder	4 Sections	DN200-DN600 pipes. LED light source (50,000h life). Real-time temperature and pressure sensors.

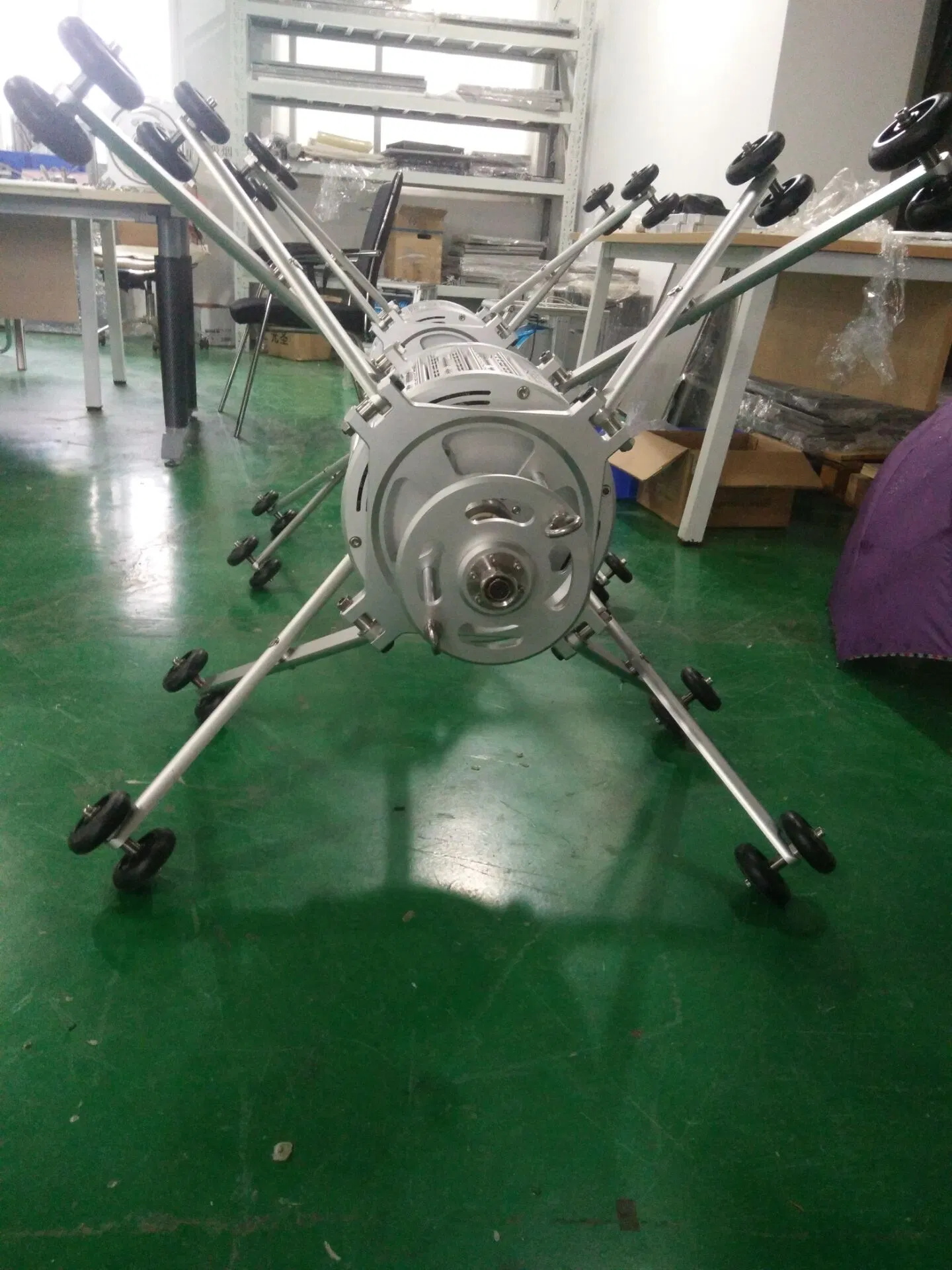

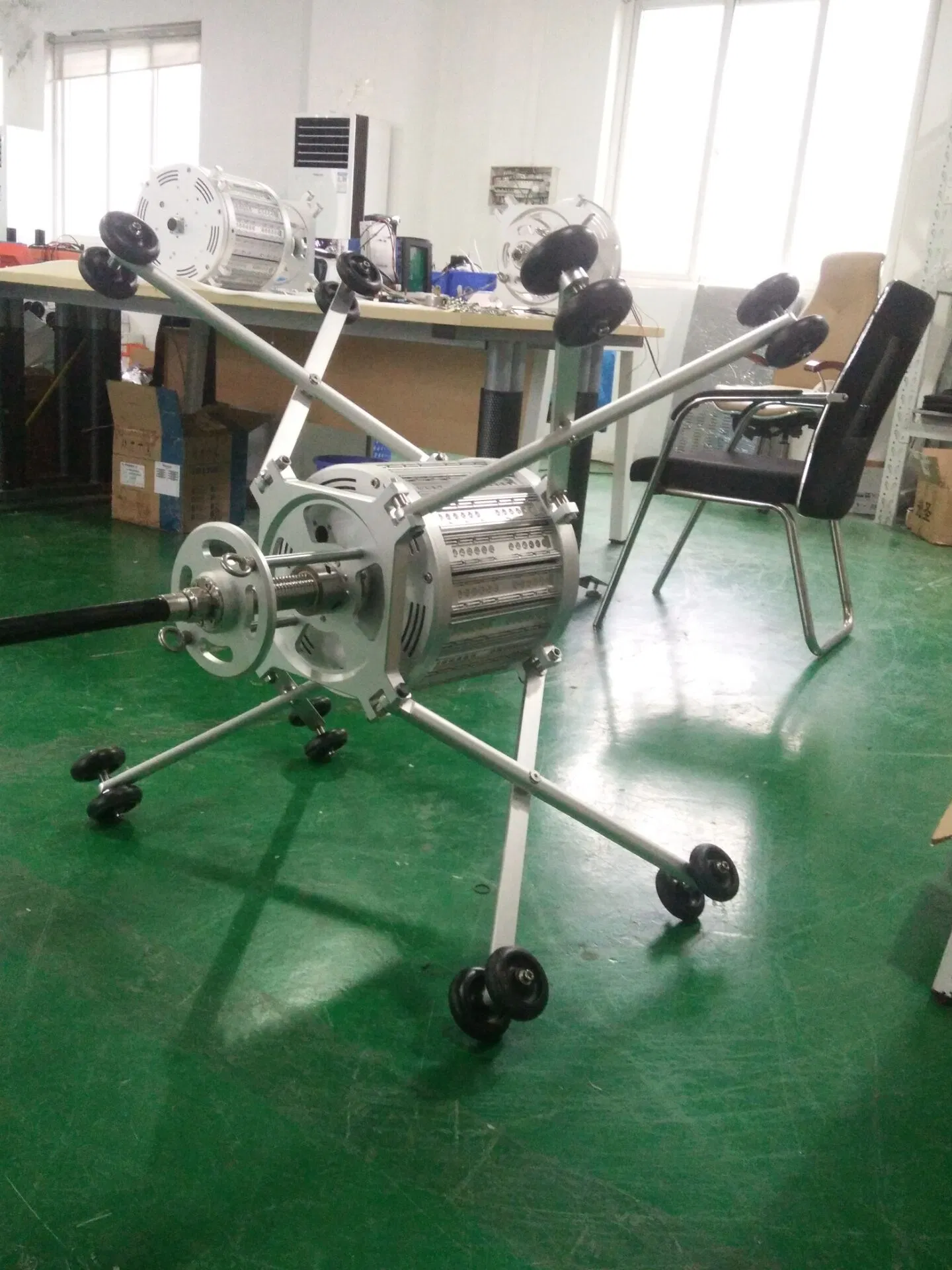

Large Lamp Holder	2 Sections	DN600-DN1600 pipes. LED light source. Electric adjustment for diameter adaptation.
Prick-head Sets	18 Pieces	Stainless steel construction. Includes sizes from DN200 to DN1600 with sealing rings for voltage stability.
Vision System	Direct/Rotating	IP68 protection, 4MP CMOS sensor, 10x optical zoom (optional rotating lens), and high-intensity LED lighting.

Exhibition & Packaging

Professional Services

Warranty Policy: 12-month warranty from arrival date with lifelong maintenance. Free replacement for non-human induced faults.

Technical Support: Comprehensive pipeline detection and repair solutions provided by professional experts.

Quality Assurance: Strict multi-point inspection and testing for every machine before packaging.

Training & Manuals: Detailed English manuals, training CDs, and factory-based hands-on training sessions available.

FAQ (Frequently Asked Questions)

Q: What kind of packaging is used for shipping?

A: We use standard plywood cases. The machine is wrapped in a waterproof plastic bag, cushioned with foam to prevent shaking, and encased in a sturdy wood craft case.

Q: Will the package be damaged during international transportation?

A: No. Our packaging accounts for all damage factors. With experienced shipping agents, we ensure the parcel arrives in perfect condition.

Q: How do I install and operate the system?

A: The machine is mostly pre-installed. We provide detailed training videos and English user manuals. Most users can learn to operate it independently.

Q: What is the lifespan of the LED light source?

A: The high-efficiency LED light source used in our lamp holders has a service life of approximately 50,000 hours.

Q: What should I do if the machine malfunctions?

A: Contact our technical team immediately. We respond within 24 hours to provide solutions. Please do not attempt unauthorized repairs.

Q: What pipe diameters can this system repair?

A: The X120-UV system is designed for trenchless repair of municipal pipes with diameters ranging from DN200 to DN1600.
