High-Tech Light Curing Resin Repair Pipe

Customization:	Available
Small Light Holder:	Adapted Pipe Diameter:200-600mm
Big Light Hoder:	600-1600mm

Send Inquiry

Product Description

Basic Specifications

Model NO.

X120UV

UV Binding Head

Stainless Steel

Transport Package

Plywood Case

Specification

1700mm*750mm*1270mm

Production Capacity

50 Sets Per Month

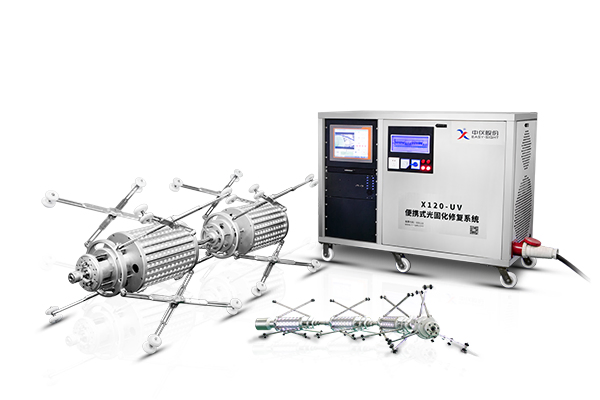

Portable Photocuring Repair System (Model: X120-UV)

Product Profile

The X120-UV portable photo-curing repair system consists of a mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens, and auxiliary tools. It is specifically designed for trenchless repair works of municipal pipe networks, supporting pipe diameters from DN200 to DN1600.

Key Advantages

01. Portability: Integrated design with high system integration; powered simply by a generator.

02. High Efficiency: Significantly short curing time and high operation speed.

03. Energy Saving: Utilizes LED curing technology for low energy consumption and zero pollution.

04. Stability: Features digital transmission and real-time monitoring of repair status with automatic stabilization.

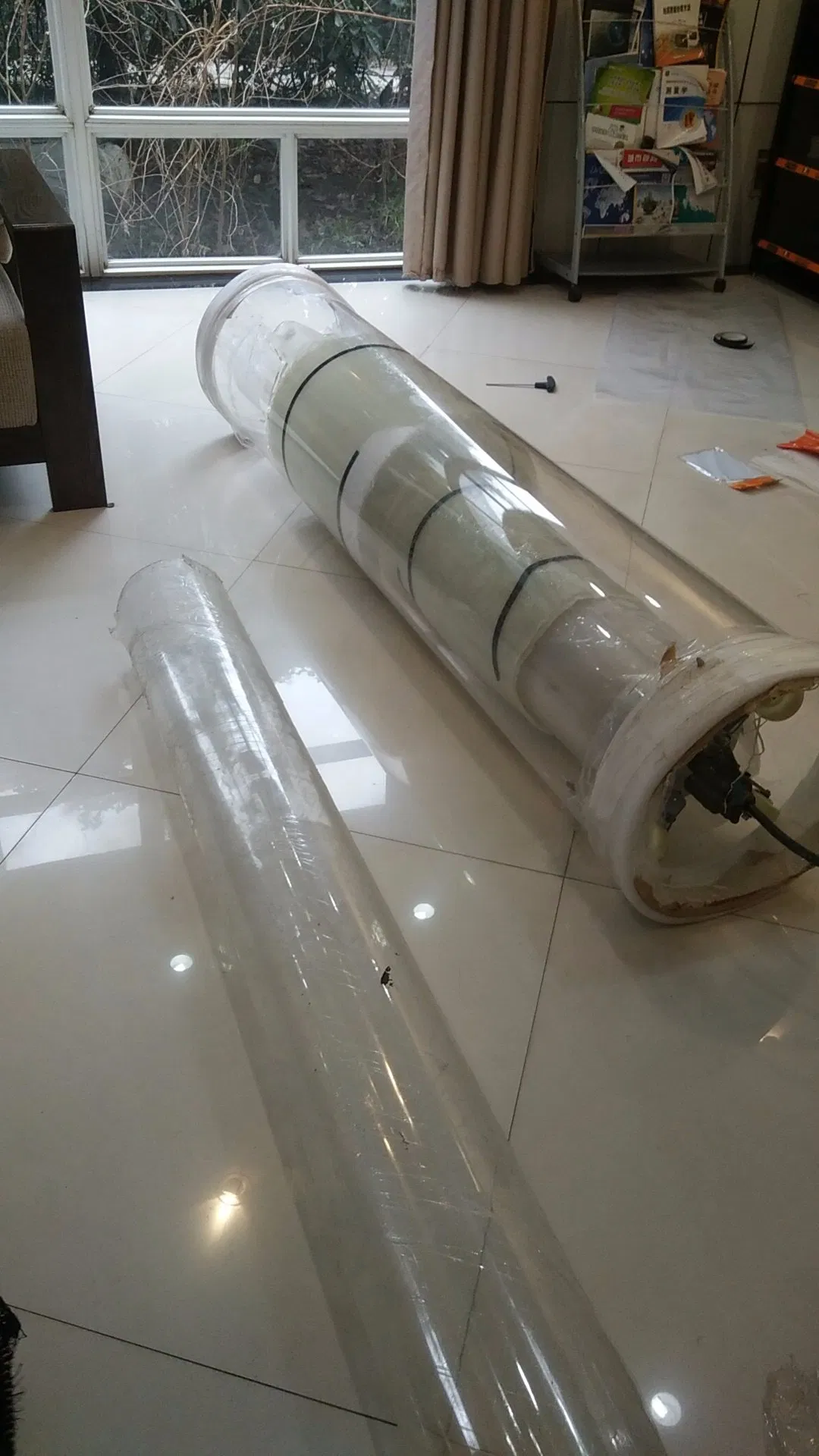

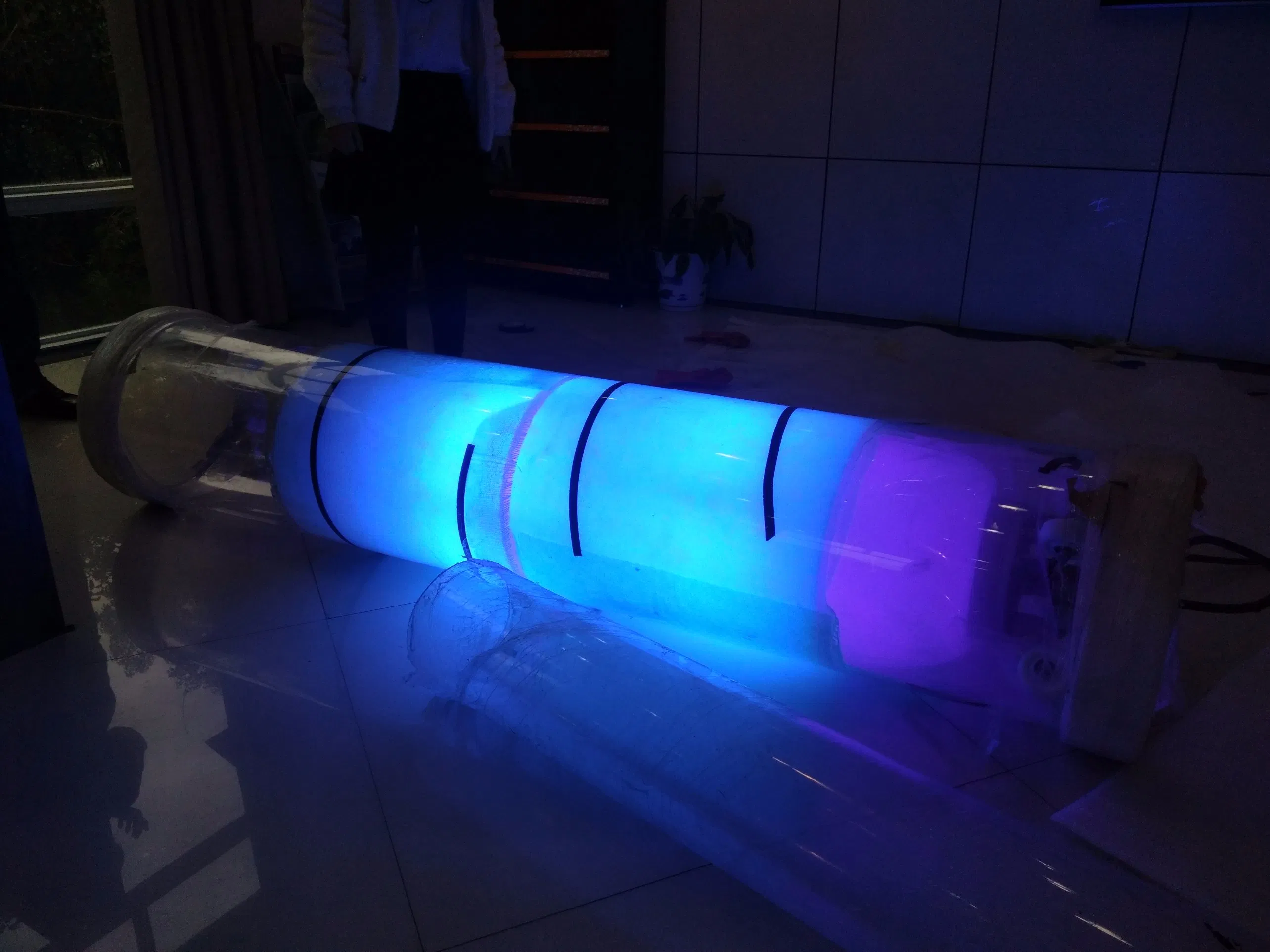

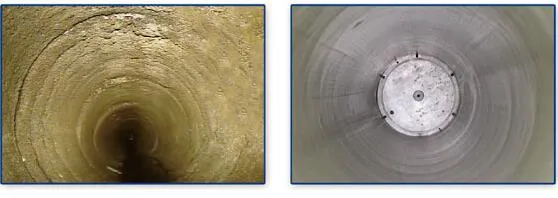

Repair Comparison

Achieve precise, efficient, and controllable results with modern UV technology.

Technical Parameters

Component	Qty	Technical Specifications
Mobile Control System	1 pc	Integrated control system, lamp rack, power supply, blast system, and 150m cable tray. 15.1-inch touch screen, 380V input, supports real-time monitoring (1920*1080P).

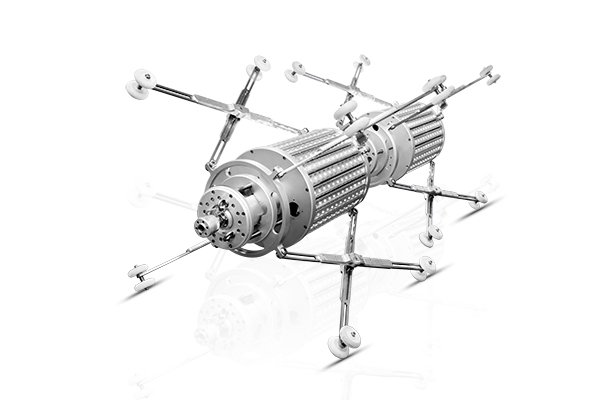

Small Lamp Holder	4 sections	Adaptive for DN200-DN600; LED light source (50,000h life); includes temperature, pressure, and laser ranging sensors.
Large Lamp Holder	2 sections	Adaptive for DN600-DN1600; Electric adjustment for pipe diameter; integrated multi-sensor monitoring.
Prick-heads	18 pcs	Stainless steel material; DN200 to DN1600 specifications; equipped with sealing rings for voltage stability.
Direct View Lens	1 pc	IP68 protection; 4 million pixels CMOS; 4x 3W LED floodlights; pressure and viewpoint indication.

Exhibition & Quality Assurance

Packing & Shipping

Professional Service Support

✅ Warranty Policy: 12-month warranty from arrival at destination port, with lifelong maintenance support.

✅ Technical Assistance: Expert guidance on pipeline detection, maintenance, and environmentally friendly solutions.

✅ Quality Control: Every machine undergoes rigorous testing before packaging to ensure perfect operation.

✅ OEM Services: Brand logo printing available; custom orders welcomed.

✅ Training: Detailed English operational manuals and training CDs provided; free factory-based technical training available.

✅ Zero Barrier Communication: Professional sales team fluent in English for seamless cooperation.

Frequently Asked Questions

Q: What type of packaging is used for international shipping? A: We use standard export plywood cases. The machine is protected by a waterproof plastic bag, a foam layer to prevent shaking, and a sturdy outer wood craft case.

Q: Is the system compatible with different pipe diameters? A: Yes, the X120-UV system is highly versatile, supporting municipal pipe diameters ranging from DN200 up to DN1600 using different lamp holder sections.

Q: How do I learn to operate the equipment? A: We provide a comprehensive English user manual and training videos. Most customers find the system intuitive. We also offer free in-person training at our facility.

Q: What happens if the machine encounters a technical issue? A: Please contact our support team immediately. We respond within 24 hours to provide troubleshooting and solutions. Do not attempt unauthorized repairs.

Q: What are the power requirements for the mobile control system? A: We recommend using a 380V, 52KW generator to ensure stable and efficient power supply for the entire curing system.

Q: Is the monitoring system high-definition? A: Yes, the system features a 4-million-pixel CMOS imaging system that captures 1920*1080P high-definition images to monitor the curing effect in real-time.
