Efficient UV Full Lining LED Curing Repair System for DN200-DN1600

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Specifications

Model NO.X120-UV

TypePipe Rehabilitation

Small Light HolderDN200-600mm

Big Light HolderDN600-1600mm

UV Binding HeadStainless Steel

Main Control Size1700*750*1270mm

Production Capacity50 Sets / Month

Product Overview

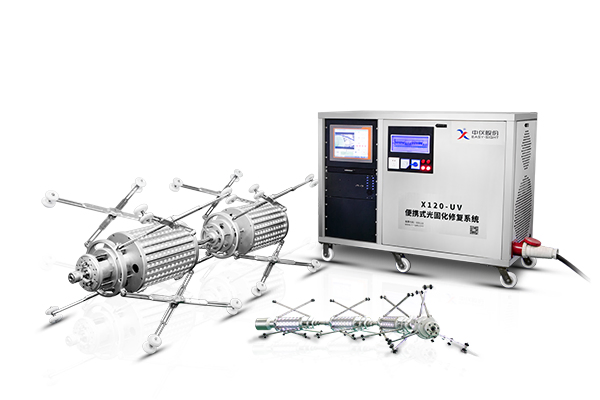

Efficient UV Full Lining LED Curing Repair System for DN200-DN1600 (Model: X120-UV)

The X120-UV portable photo-curing repair system consists of a mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens, and auxiliary tools. It is specifically designed for trenchless repair of municipal pipe networks with diameters ranging from DN200 to DN1600.

Key Advantages

📦 Portability

Integrated design with high integration; requires only a generator for power supply.

⚡ High Efficiency

Features short curing times and high-speed operation for faster results.

🌱 Energy Saving

Utilizes LED curing technology for low energy consumption and zero pollution.

⚙️ Stability

Digital transmission with real-time monitoring and automatic stabilization of repair status.

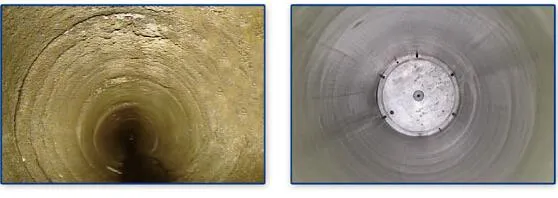

Precise Repair Results

Technical Parameters

Component	Quantity	Technical Specifications
Mobile Control System	1 Unit	15.1" touch screen, 380V input, embedded industrial PC, 150m standard cable, 1080P image acquisition, automatic cable take-up, weight ~320kg.
Small Lamp Holder	4 Sections	Adaptive DN200-DN600, LED light source (50,000h life), integrated temperature/pressure/laser sensors.
Large Lamp Holder	2 Sections	Adaptive DN600-DN1600, electric diameter adjustment, LED light source, real-time monitoring.
Stainless Steel Prick-head	18 Pieces	DN200 to DN1600 specifications, equipped with sealing rings for voltage stabilization.
Direct View Lens	1 Unit	IP68 protection, 4 million pixels (2592*1520), 0.1Lux sensitivity, 4x LED floodlights.

International Presence & Logistics

Our Service Standards

After-Sales Service

12-month warranty from arrival at destination. Lifelong maintenance and technical support provided.

Quality Assurance

Strict inspection protocols for every machine to ensure 100% operational readiness before dispatch.

Training & Support

Detailed English manuals and training videos included. OEM services and custom branding available.

Frequently Asked Questions

❓ What range of pipe diameters can the X120-UV handle?

The system is versatile, covering pipe diameters from DN200 up to DN1600 using interchangeable small and large lamp holders.

❓ How long is the transmission cable?

The standard cable length is 150 meters, featuring a Kevlar anti-drawing core and polyurethane sheath for high durability.

❓ What are the power requirements for the system?

We recommend using a 380V, 52KW generator to provide stable power for the mobile control system and curing lamps.

❓ Is the curing process monitored in real-time?

Yes, the system captures high-definition 1080P video and uses built-in temperature and pressure sensors to monitor the status throughout the repair.

❓ How is the equipment protected during international shipping?

The machine is wrapped in a waterproof plastic bag, cushioned with thick foam, and secured inside a standard export plywood case.

❓ What happens if the machine encounters an issue?

We respond within 24 hours to all technical inquiries. During the 12-month warranty, replacement parts for non-human errors are provided free of charge.
