Efficient, Environment- -Friendly and Smart Repair The Pipeline

Customization:	Available
Small Light Holder:	Adapted Pipe Diameter:200-600mm
Big Light Hoder:	600-1600mm

Send Inquiry

Product Description

Basic Info.

Model NO.

X120UV

UV Binding Head

Stainless Steel

Transport Package

Packed in Plywood Case

Specification

1700mm*750mm*1270mm

Trademark

easysight

Production Capacity

50 Sets of Per Month

Product Description

Portable photocuring repair system (Model:X120-UV)

📋 Product Profile

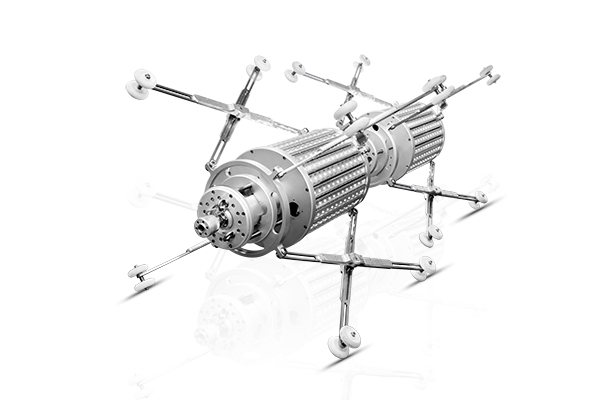

X120-UV portable photo-curing repair system consists of mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens and auxiliary tools. It is mainly applicable to trenchless repair works of municipal pipe networks, with repair pipe diameters DN200-DN1600.

🚀 Product Advantages

PortabilityIntegrated design, high integration, power supply by generator only.

High efficiencyShort curing time and high speed.

Energy savingLED curing, low energy consumption and no pollution.

StabilityDigital transmission, real-time monitoring, automatic stabilization.

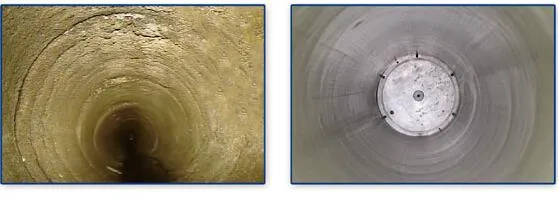

📊 Comparison of Repair Results

Precise, efficient, controllable.

Technical Parameters

Component	Quantity	Technical parameters and instructions
Mobile Control System	1 piece	Integrated control system, lamp rack, power supply, blast system, and cable tray; 380V input; 15.1 inch touch screen; 150m cable with high-precision encoder.

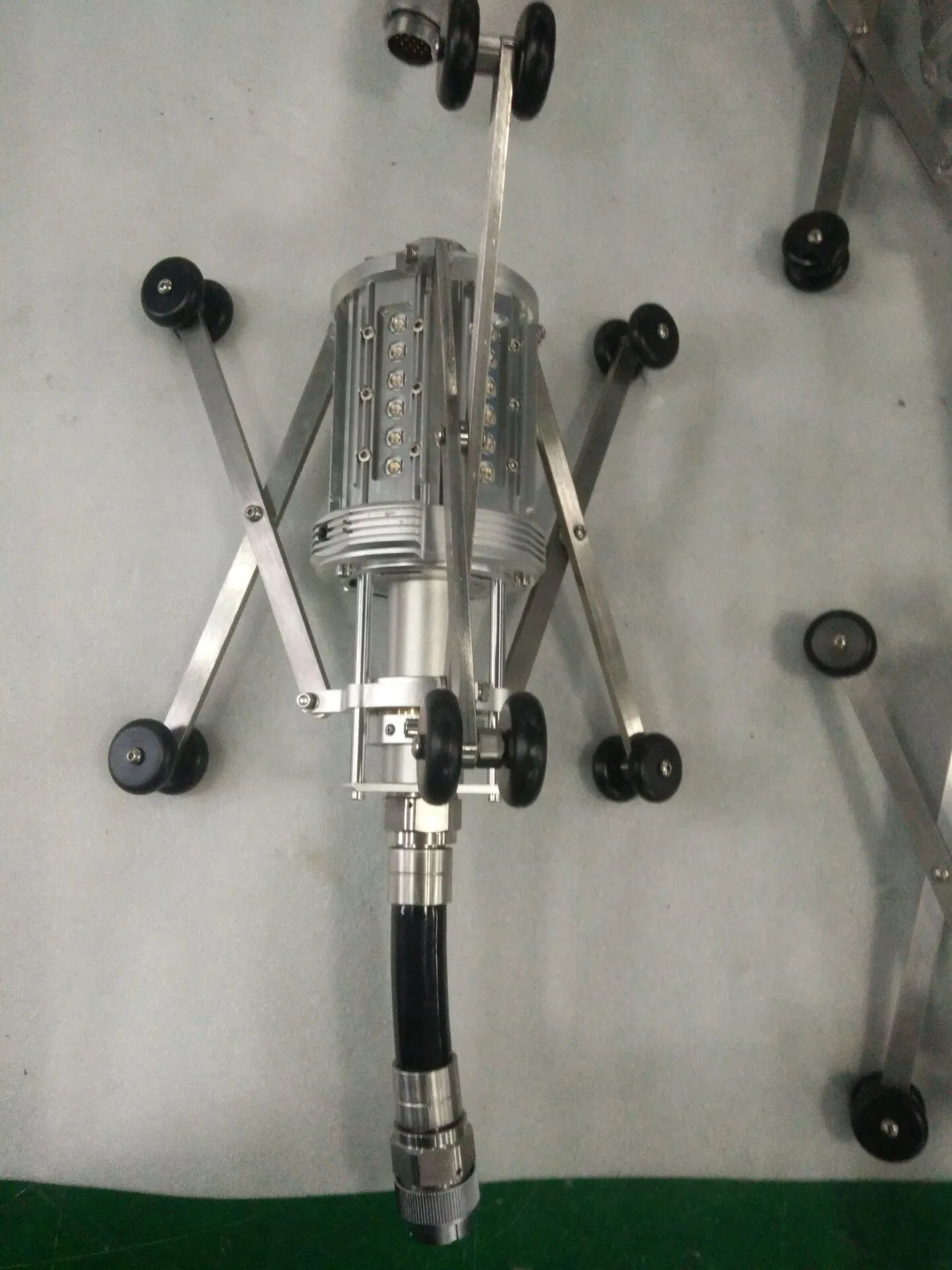

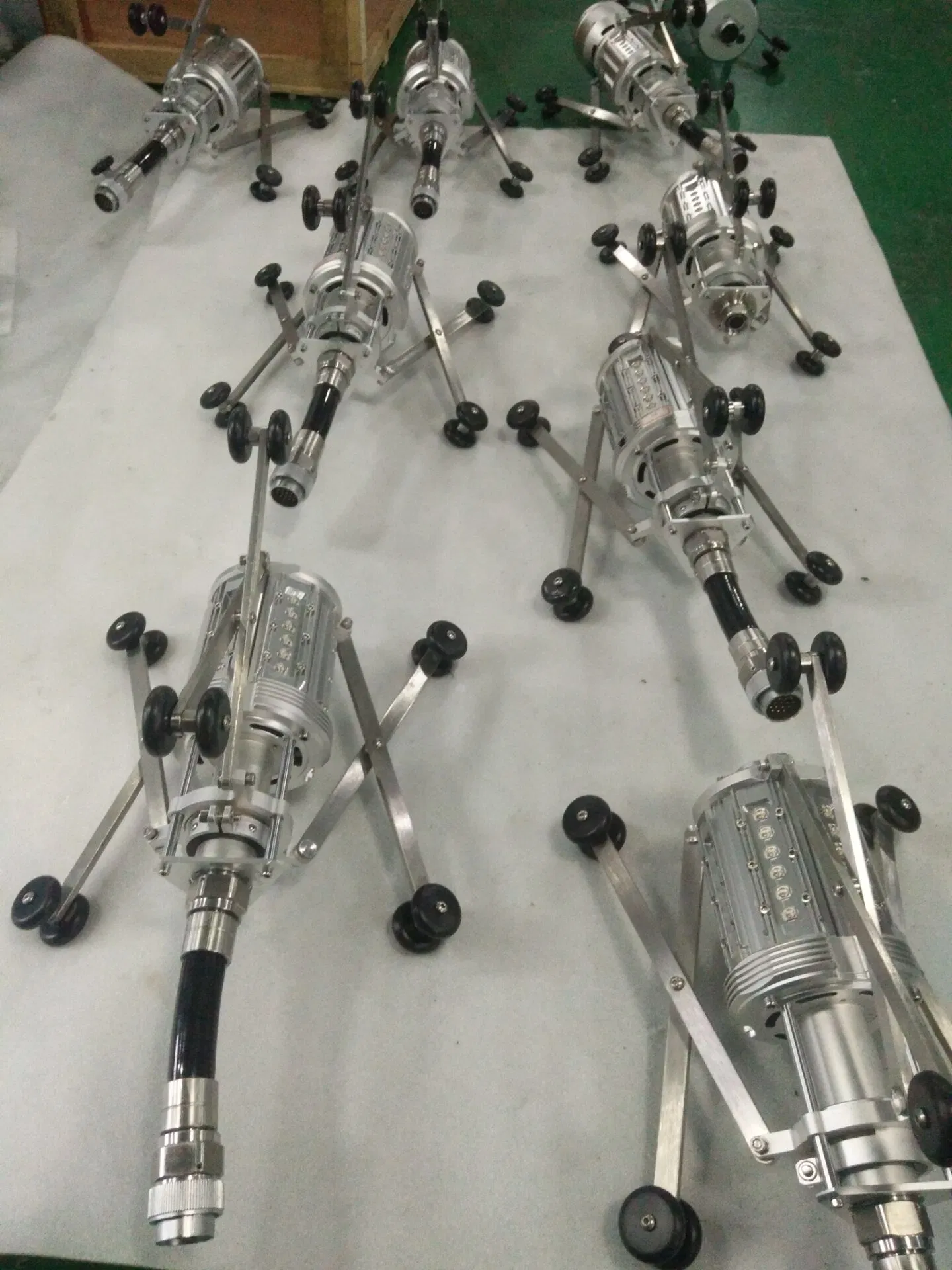

Small Lamp Holder	Section 4	Adaptive pipe diameter: DN200-DN600; LED light source (50000h life); Sensors for temperature, pressure, and laser ranging.
Large Lamp Holder	Section 2	Adaptive pipe diameter: DN600-DN1600; Electric adjustment; LED light source; Real-time monitoring of curing process.
Small Prick-head	10 pieces	Stainless steel; Sealing ring for voltage stability; Sizes: DN200, DN300, DN400, DN500, DN600.
Large Prick-head	8 pieces	Stainless steel; Sealing ring; Sizes: DN800, DN1000, DN1200, DN1600.
Direct View Lens	1 piece	IP68 protection; 4 million pixels CMOS; 4 floodlight LEDs; Built-in air pressure sensor.
Rotating Lens (Optional)	1 piece	IP68 protection; 360° rotation, 10x optical zoom; 4 million pixels; One-key homing.

Exhibitions & Quality

📜 Certificates

📦 Packing & Shipping

Service & Warranty

Warranty:

12 months from destination arrival; lifelong maintenance support.

Quality Check:

Strict testing of every machine before packaging.

Support:

English manuals, training CDs, and zero-barrier communication via professional sales team.

OEM:

Custom logo printing available free of charge.

FAQ (Frequently Asked Questions)

What is the packaging method?

We use standard plywood cases. The machine is protected by foam in the middle to prevent shaking and covered by a thick plastic bag for waterproofing.

Will the package be damaged during transportation?

Our packaging considers all damage factors to ensure safety. Our shipping agents are highly experienced in safe transportation, ensuring the parcel arrives in good condition.

How do I install and operate the machine?

Technicians install the machine before shipping. For minor parts, we provide detailed training videos and a user manual. Most customers can learn independently.

What is the repair range of this system?

The X120-UV system is designed for pipe diameters ranging from DN200 up to DN1600, using specialized lamp holders for different sizes.

How long is the LED light source lifespan?

The system utilizes high-quality LED light sources with a service life of approximately 50,000 hours.

What should I do if the machine goes wrong?

Contact us immediately and do not attempt to fix it yourself. We will respond within 24 hours to provide a technical solution.
