Automatic Intelligent Repair of Gaps in Underground Pipelines

1 / 5

Automatic Intelligent Repair of Gaps in Underground Pipelines

Customization:	Available
Type:	Pipe Rehabilitation
Small Light Holder:	Adapted Pipe Diameter:200-600mm

Send Inquiry

Product Description

📋 Basic Information

Model NO.

X120UV

Big Light Holder

600-1600mm

UV Binding Head

Stainless Steel

Package

Plywood Case

Specification

1700mm*750mm*1270mm

Trademark

easysight

Capacity

50 Sets Per Month

🚀 Portable Photocuring Repair System (X120-UV)

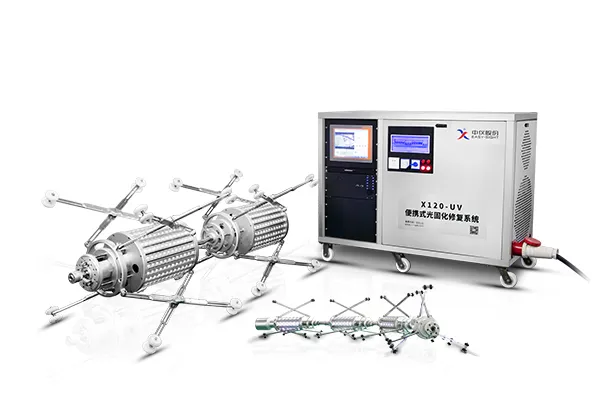

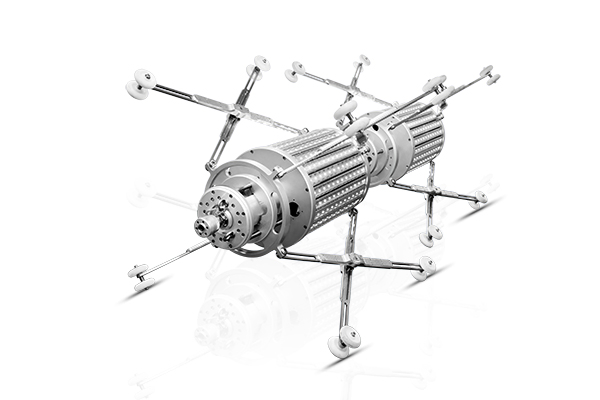

The X120-UV portable photo-curing repair system consists of a mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens, and auxiliary tools. It is specifically designed for trenchless repair works of municipal pipe networks, supporting pipe diameters from DN200 to DN1600.

⭐ Product Advantages

PortabilityIntegrated design with high integration; powered efficiently by generator.

High EfficiencyFeatures short curing times and high-speed operation for rapid repairs.

Energy SavingLED curing technology ensures low energy consumption and zero pollution.

StabilityDigital transmission with real-time monitoring and automatic stabilization.

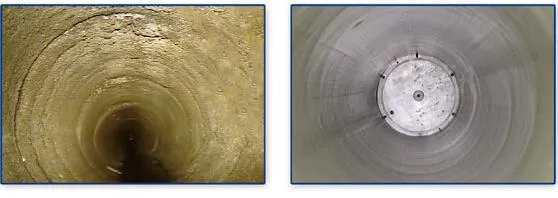

🔍 Repair Results: Precise & Controllable

⚙️ Technical Parameters

Component Name	Quantity	Technical Parameters & Instructions

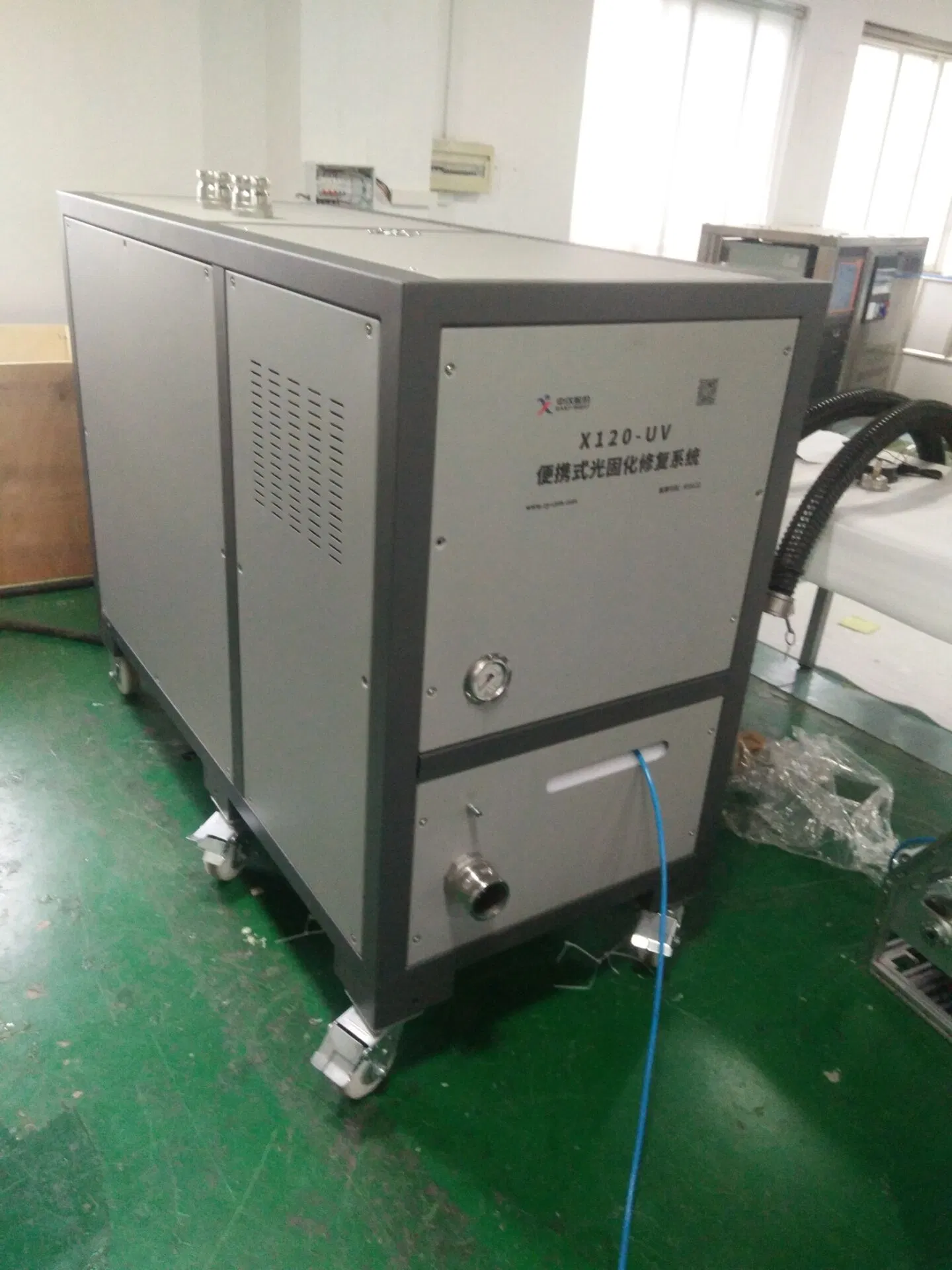

Mobile Control System	1 piece	Integrated control, lamp rack, power, blast, and cable tray systems. 15.1 inch touch screen, 380V input. Standard cable length 150m. Weight: ~320kg.

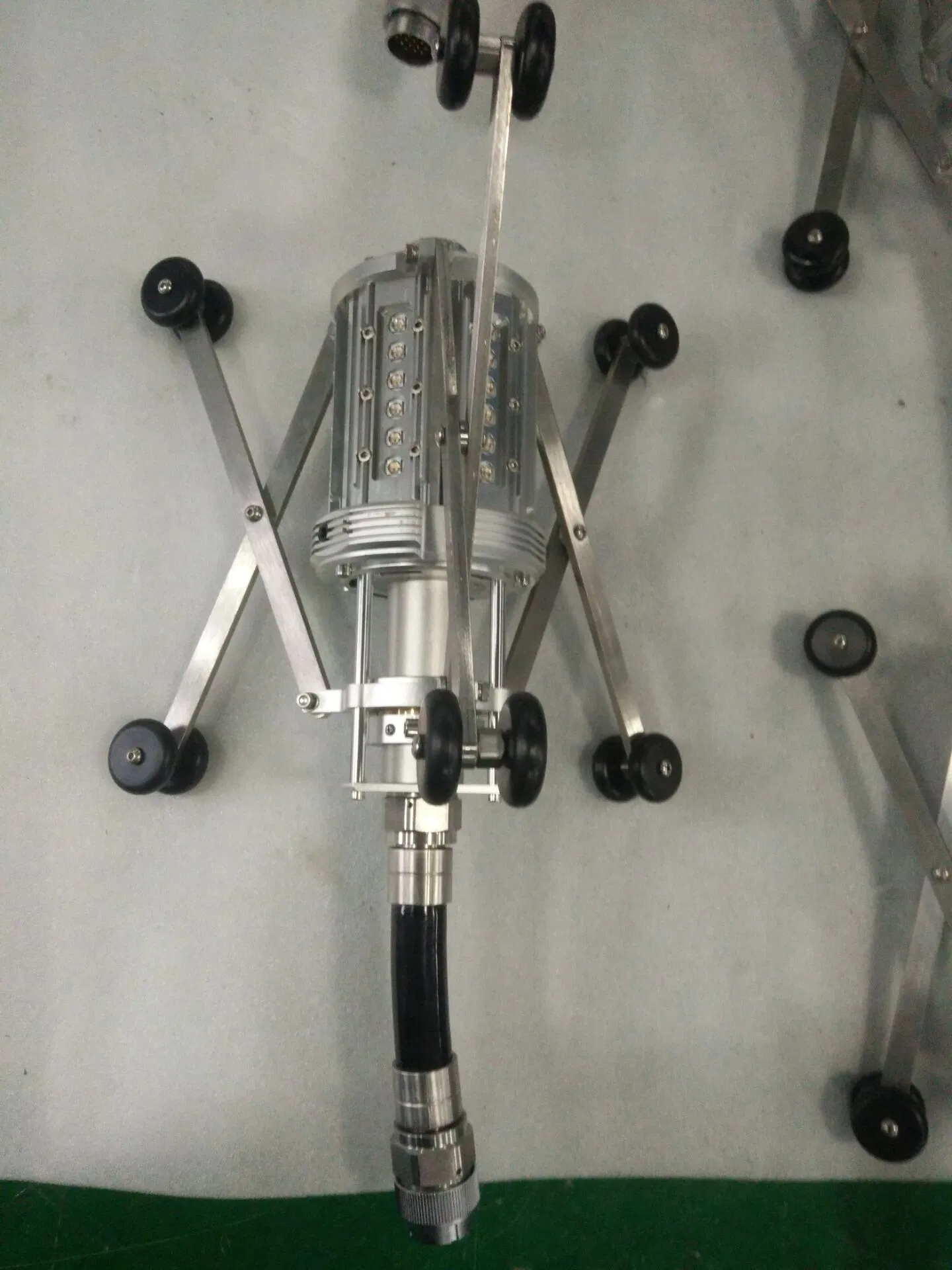

Small Lamp Holder	Section 4	Adaptive pipe diameter: DN200-DN600. LED light source (50,000h life). Real-time temperature, pressure, and distance sensors.

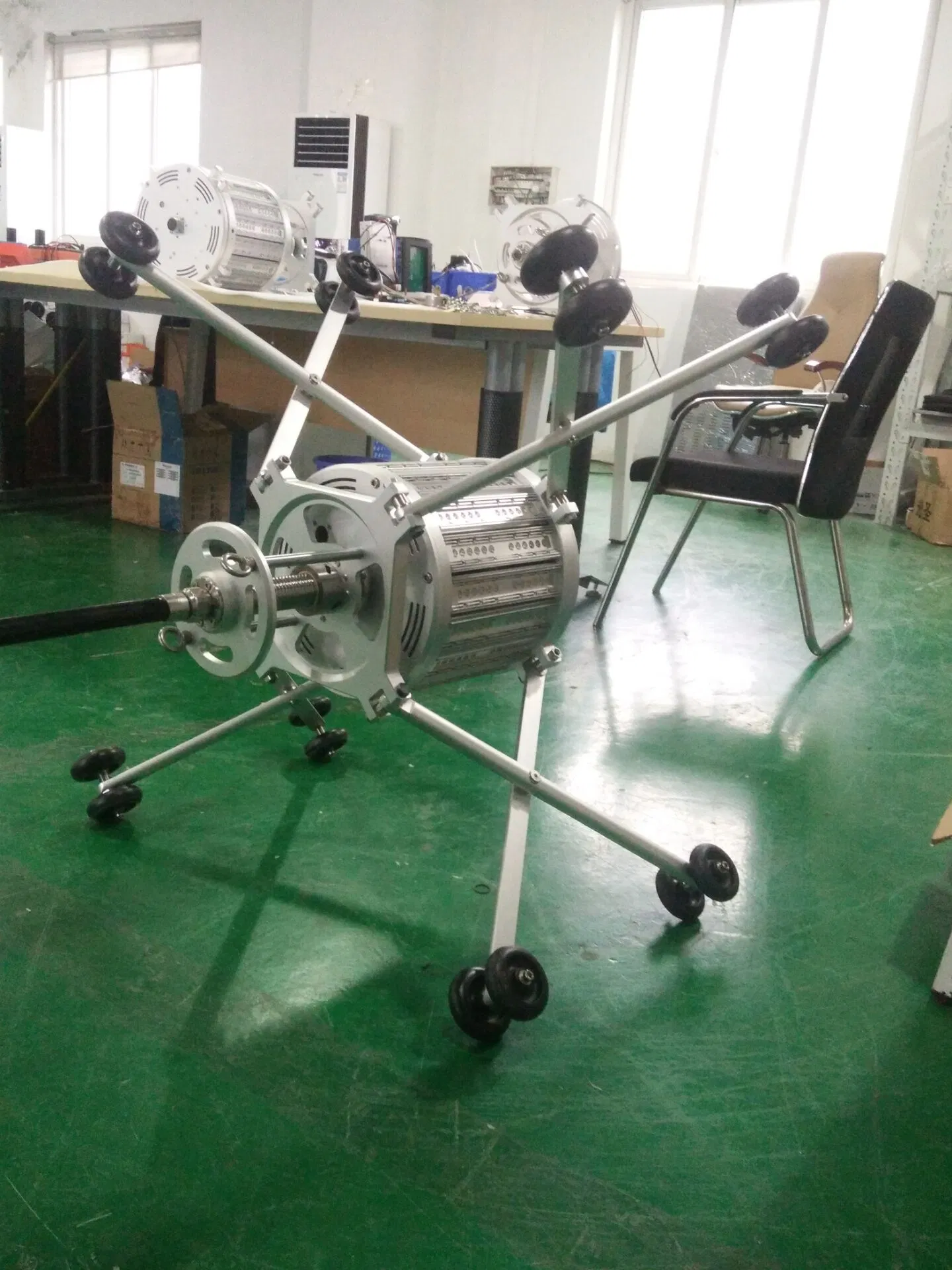

Large Lamp Holder	Section 2	Adaptive pipe diameter: DN600-DN1600. Electric adjustment for pipe diameter. LED light source with monitoring sensors.
Stainless Steel Prick-head	18 pieces	Includes specifications for DN200 to DN1600. Equipped with sealing rings for voltage stabilization.
Direct View Lens	1 piece	IP68 protection, 4 million pixels CMOS, 0.1Lux sensitivity. Built-in pressure indicator.
Rotating Lens (Optional)	1 piece	360° unlimited rotation, 10x optical zoom, automatic focusing, IP68 waterproof.

🌍 Exhibition & Quality Assurance

📦 Packing & Shipping

🛠️ Professional Services

Warranty Policy12 months warranty from arrival date with lifelong maintenance support.

Technical SupportExpert guidance on pipeline detection, maintenance, and eco-friendly repair solutions.

Quality ControlEvery machine undergoes strict testing before packaging to ensure optimal performance.

TrainingDetailed English manuals and training videos provided; free factory training available.

❓ Frequently Asked Questions

What pipe diameters can the X120-UV system repair?

The system is designed for trenchless repair of pipe diameters ranging from DN200 to DN1600 using different lamp holder configurations.

How is the machine protected during international shipping?

We use standard plywood cases. The machine is wrapped in a thickened plastic bag for waterproofing and surrounded by foam to prevent shaking during transit.

Is the curing process monitored in real-time?

Yes, the system features high-definition cameras (front and rear) and sensors for temperature, pressure, and speed to monitor the entire curing process.

What happens if the machine encounters a technical issue?

We provide a 24-hour response time. Our technical team will assist you remotely, and we offer a 12-month warranty for free replacement of non-man-made faulty parts.

Do you provide operational training?

Yes, we provide a detailed English operational manual and training videos. Customers are also welcome to visit our facility for free hands-on technical training.

What is the lifespan of the LED light source?

The high-efficiency LED light source used in our lamp holders has a service life of approximately 50,000 hours.
