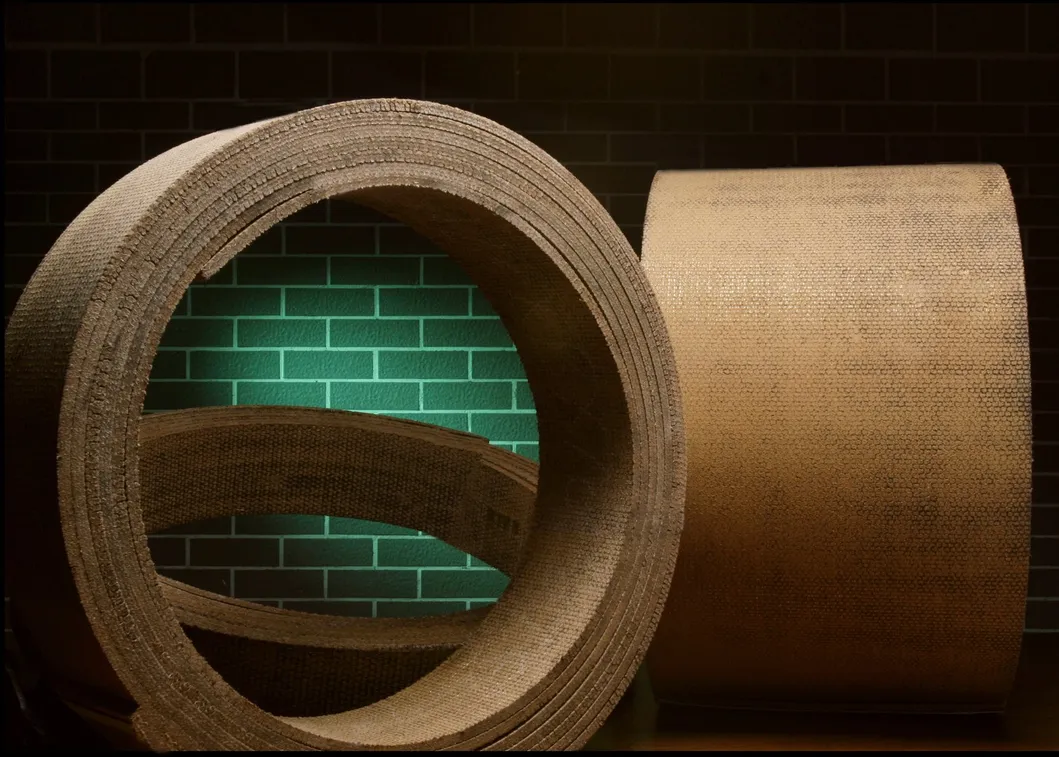

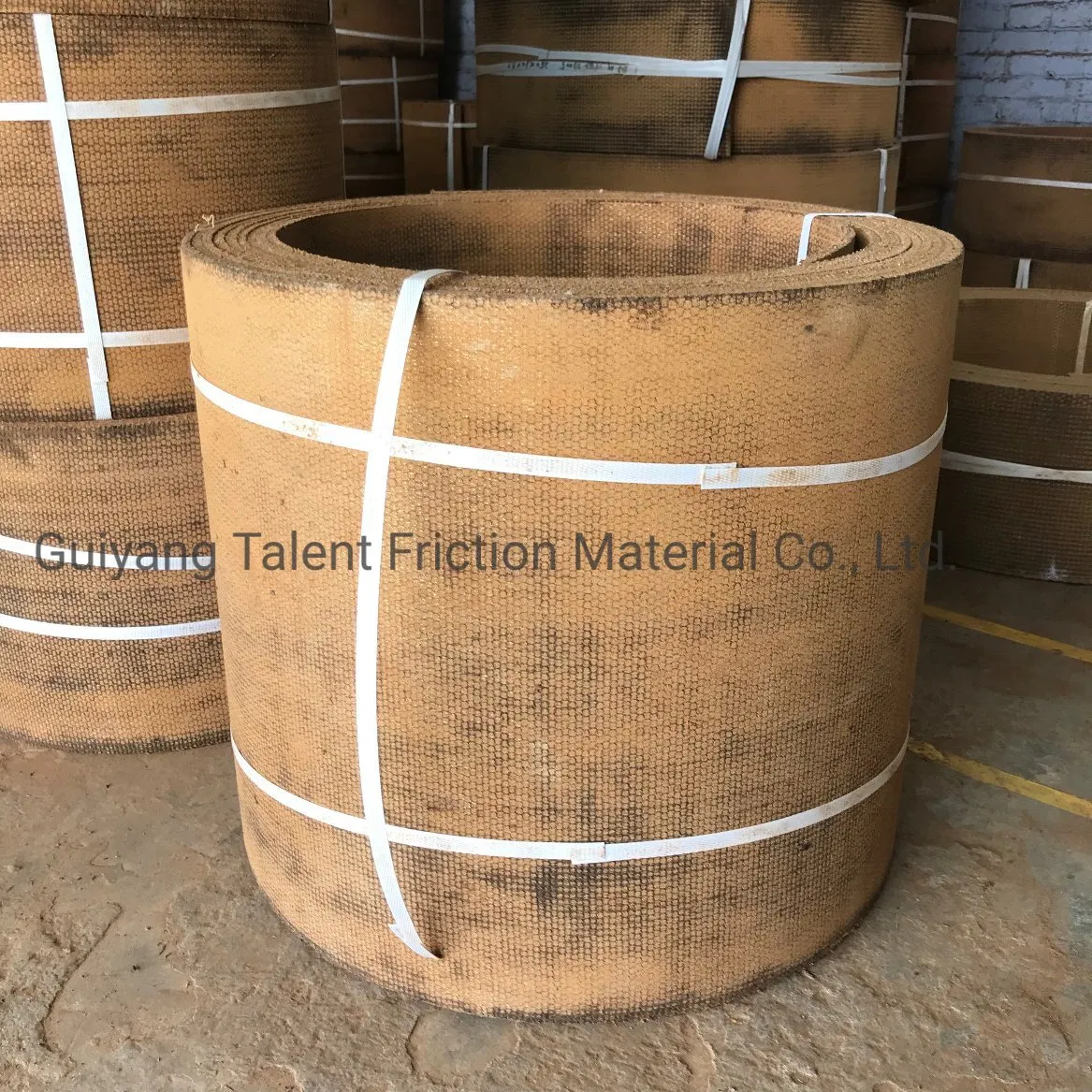

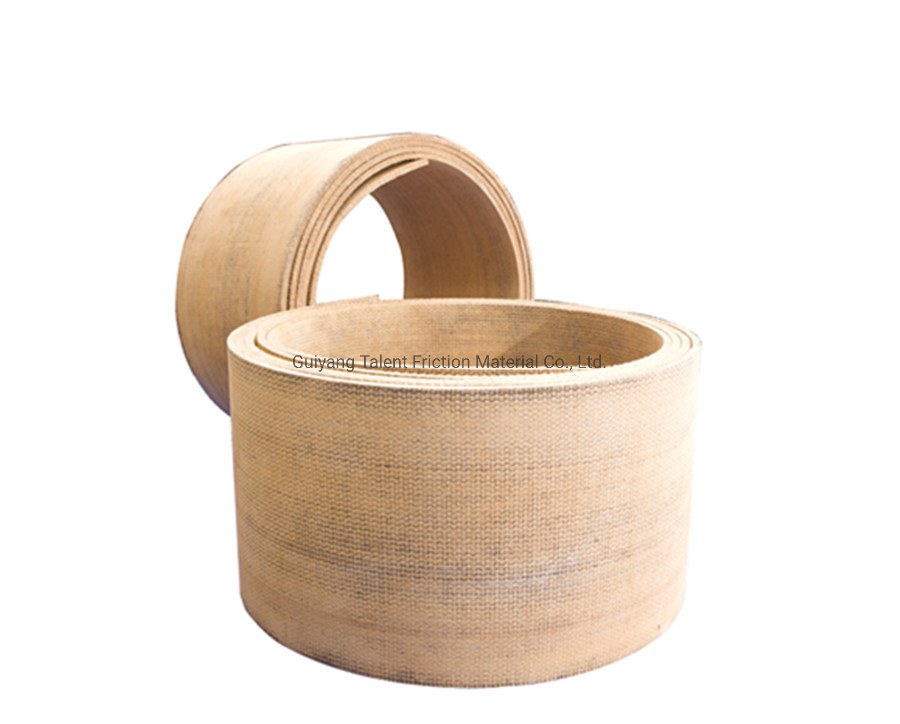

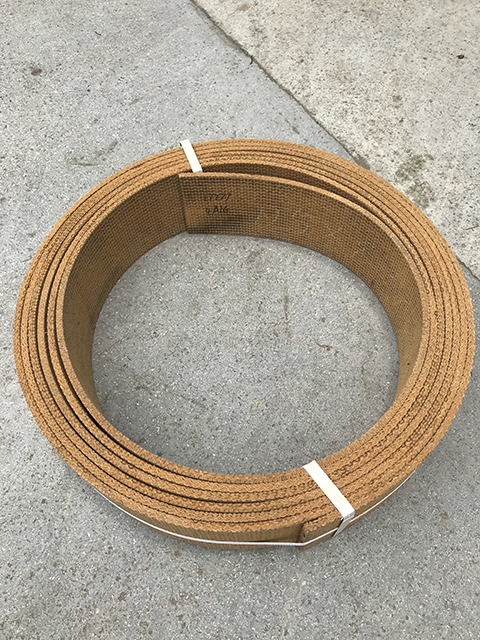

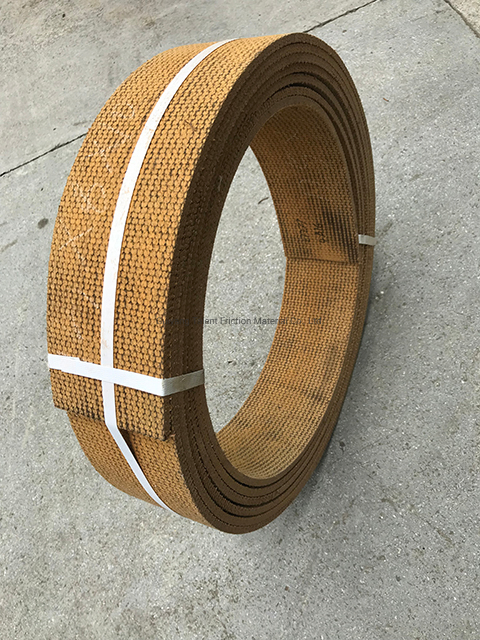

Woven Brake Lining Roll of Brake Part for Anchor Winch/Grab Dredger/Deck Machinery

1 / 5

Woven Brake Lining Roll of Brake Part for Anchor Winch/Grab Dredger/Deck Machinery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TL2003

Position

Winch

Certification

ISO/TS16949, ISO9001

Classification

Brake

Main Market

North America, SE Asia, W Europe

Applying for

Winch, Windlass

Size

120*12mm

Color

Brown

Origin

China

HS Code

5910000000

Packaging & Delivery

Package Size

70.00cm * 70.00cm * 30.00cm

Gross Weight

40.000kg

Transport Package

Pallet

Product Description

TL2003 is a semi-flexible Non-Asbestos Brake Lining designed for medium and heavy-duty applications. This solid composite is woven from multiple fabric types containing brass wire and is impregnated with specially developed resins. The resulting dense, tough material exhibits high resistance to heat and wear, providing excellent stability under various load conditions. It is specifically suitable for cast iron and steel working surfaces.

Applications

TL2003 is extensively utilized in marine and industrial sectors. Suitable applications include:

Winch and Windlass
Hoists and Cranes
Winder, Drilling, and Workover Rigs
Agricultural Vehicles and Elevators
Construction Machinery

Note: When used in oil-immersed applications, the friction value will be significantly lower compared to dry conditions.

Technical Specifications

Width	Max 510mm (20 inches)
Thickness	3.2mm - 25.4mm (1/8 - 1 inch)
Length	10 Meters

Frictional Properties

Normal	0.49
Hot	0.50
400°F	0.48

Operating Range

Max. Pressure	250 psi
Max. Rubbing Speed	5000 ft/min
Max. Intermittent Temp	650°F (340°C)
Max. Continuous Temp	600°F (315°C)

Frequently Asked Questions

What materials is the TL2003 brake lining composed of?

TL2003 is a solid composite woven from several types of fabric containing brass wire and impregnated with specialized resins.

Is this product suitable for heavy-duty marine use?

Yes, it is extensively used for marine winches, windlasses, and deck machinery due to its high resistance to heat and wear.

Can TL2003 be used in wet or oil-immersed environments?

Yes, but please note that the friction value will be much lower in oil-immersed applications compared to dry operating conditions.

What are the maximum temperature limits for this lining?

It can handle an intermittent temperature of up to 650°F (340°C) and a continuous temperature of 600°F (315°C).

What sizes are available for the TL2003 model?

The standard width goes up to 510mm, with thickness ranging from 3.2mm to 25.4mm, typically supplied in 10-meter lengths.

Is the material asbestos-free?

Yes, TL2003 is a non-asbestos woven brake lining, ensuring compliance with modern safety and environmental standards.
