Product Description

Basic Specifications

Model NO.
TL2003
Position
Windlass
Certification
ISO/TS16949, ISO9001
Classification
Winch Brake
Main Market
North America, Europe, SE Asia, Africa
Application
Windlass, Winch
Size
380*30mm
System
Anchor Chains and Fittings
Industry
Deck Machinery
Transport Package
Pallet
Specification
Customized sizes available
HS Code
5910000000

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 20.00cm
Gross Weight
60.000kg

Product Description

Description of Woven Resin Brake Lining Roll: Non asbestos Woven Brake Lining TL2003 is a semi-flexible Non Asbestos Brake Lining for medium and heavy duty applications. Introduced using advanced technology, this was the first non-asbestos woven brake lining produced in China, tested under SAE J661A testing method standards.

Application: Suitable for cast iron and steel working surfaces. Ideal for winch, windlass, hoist, crane, winder, drilling and workover rigs, agricultural vehicles, elevators, and construction machinery.

✓
Wear Resistance
Excellent durability for long-term industrial use.
✓
Heat Resistance
Maintains performance under high thermal stress.
✓
Tensile Strength
High strength construction for heavy-duty loads.
✓
Riveting Ready
Specially designed to be suitable for riveting applications.

Dimension Details:
• Width: Max 510mm (20 inches)
• Thickness: 3.2mm - 32.0mm (1/8 - 1 inch)
• Length: 10 Meters

Recommended Operating Range:
• Max. Pressure: 250 psi
• Max. Rubbing Speed: 5000 ft/min
• Max. Intermittent Temperature: 650°F (340°C)
• Max. Continuous Temperature: 600°F (315°C)

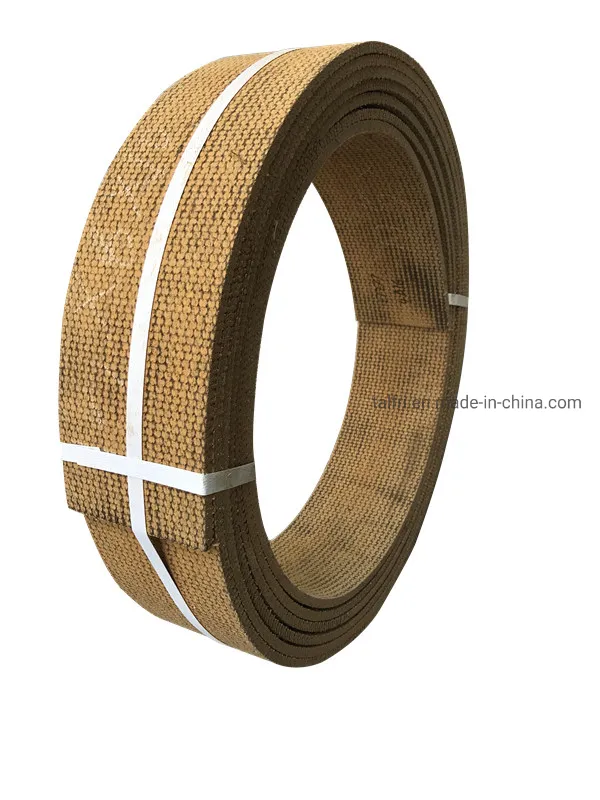

Brake Lining 1

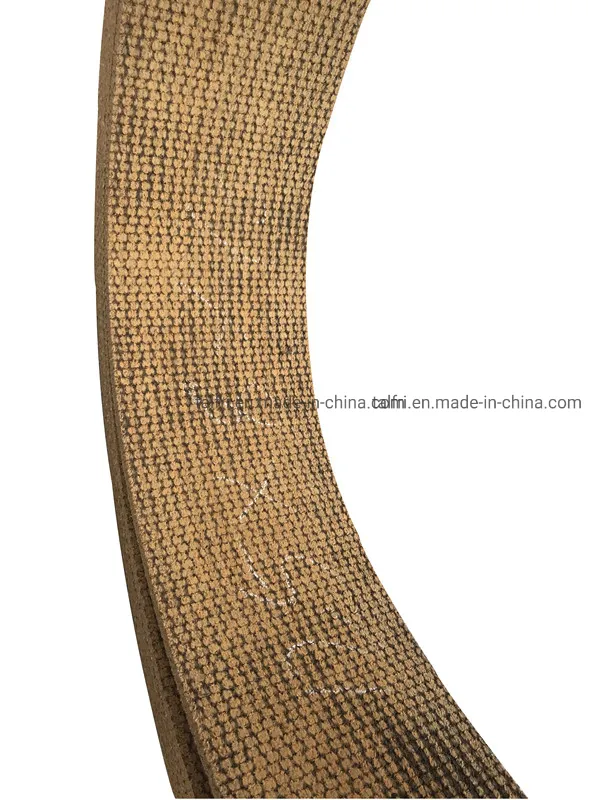

Brake Lining 2

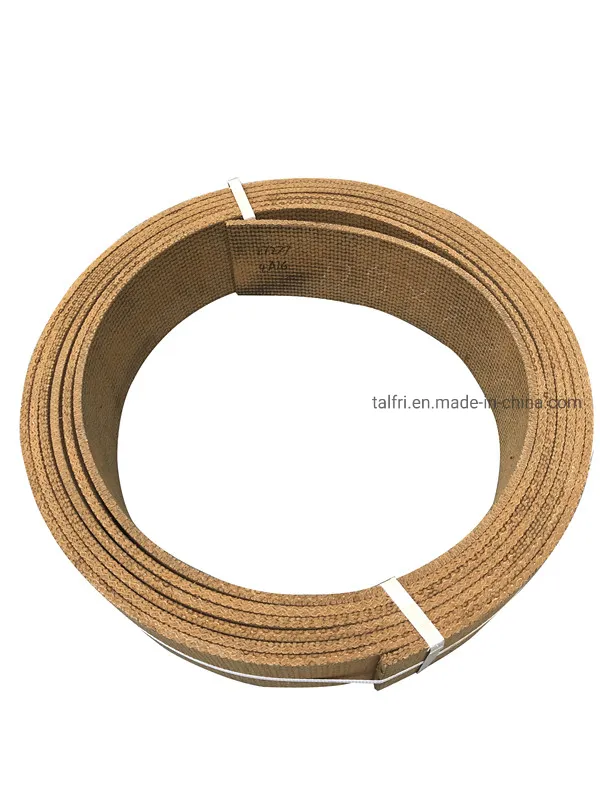

Brake Lining 3
Brake Lining 4

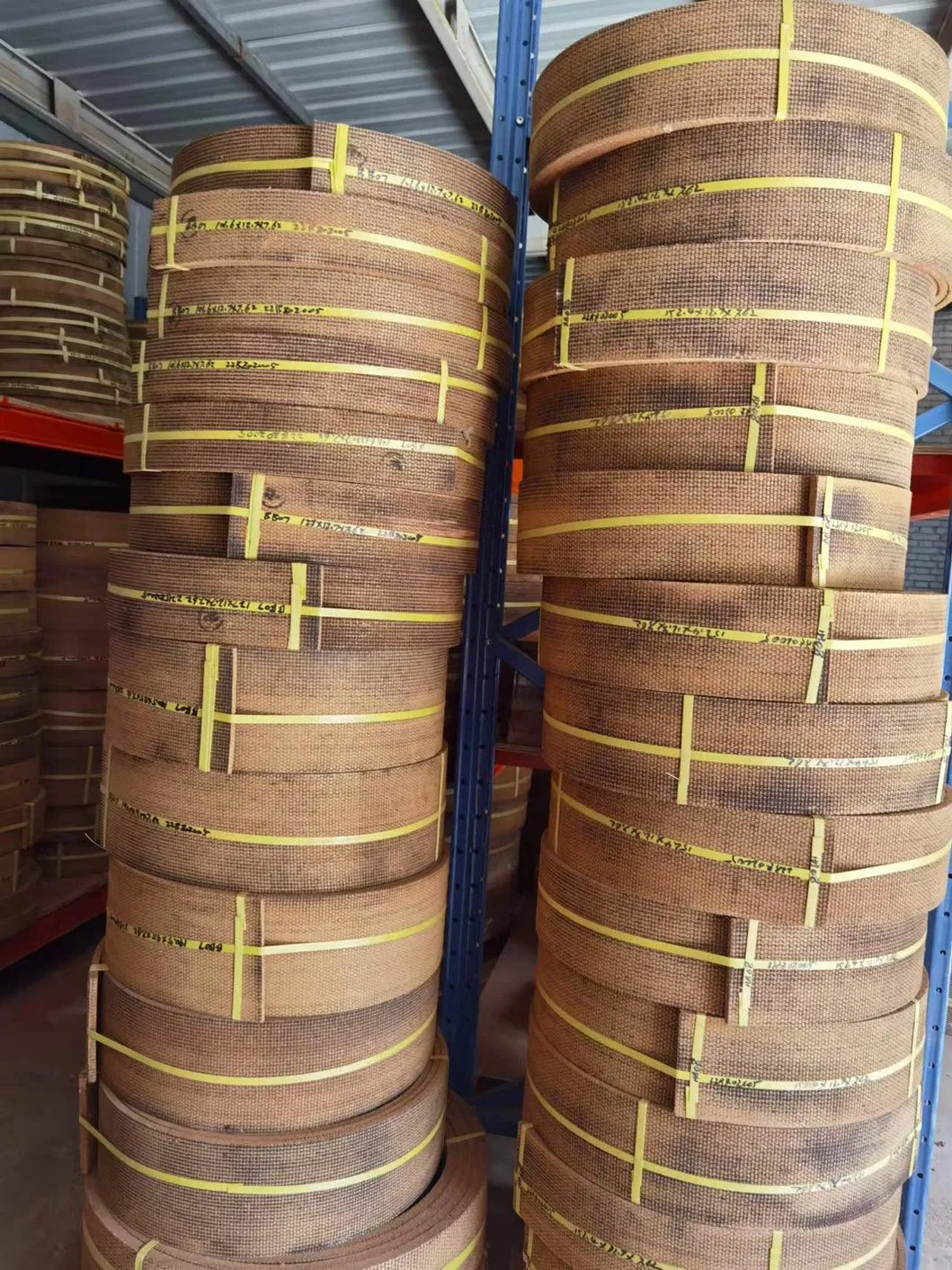

Brake Lining 5

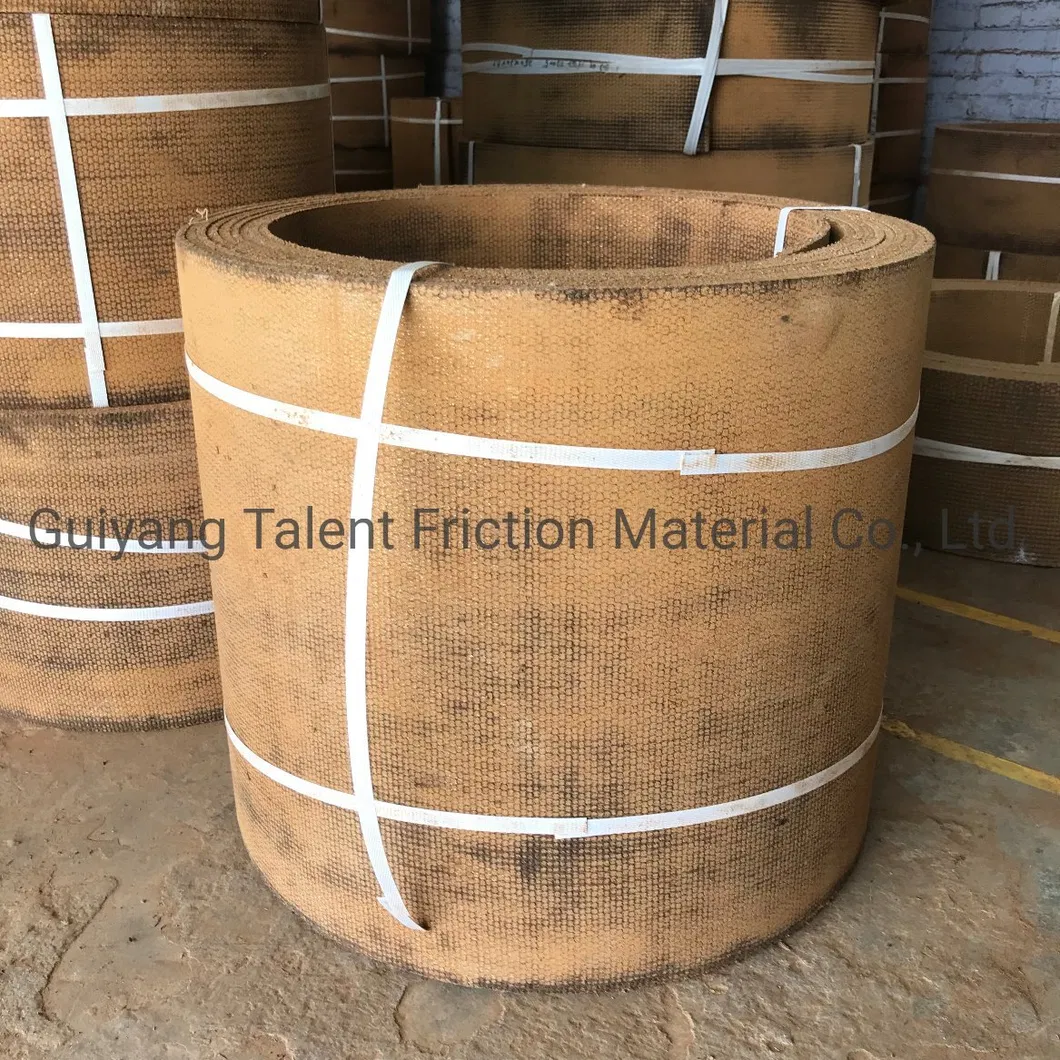

Brake Lining 6

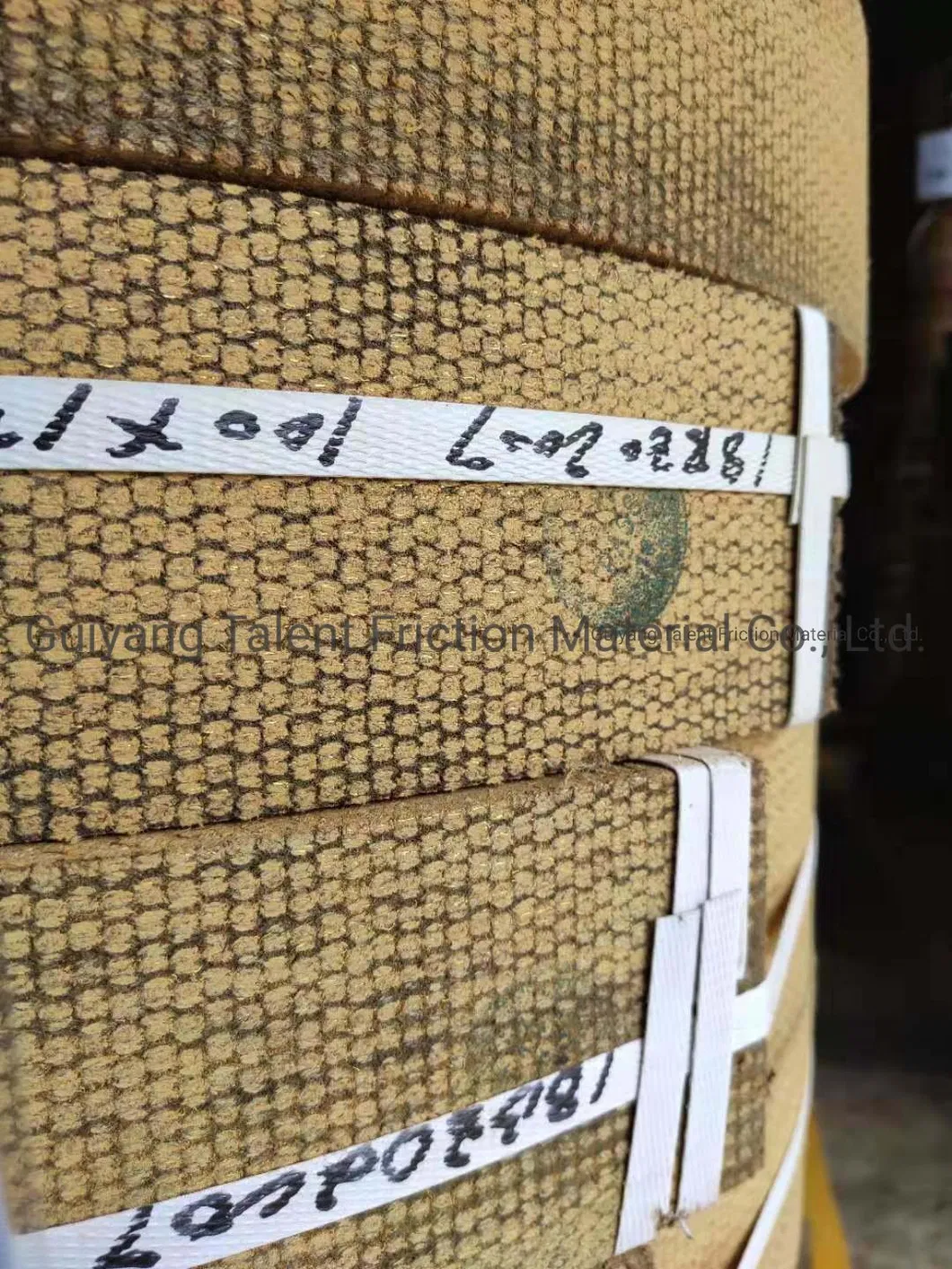

Brake Lining 7

Frequently Asked Questions

Is the TL2003 brake lining made of asbestos?
No, the TL2003 is a non-asbestos woven resin brake lining, making it safer for the environment and operators.
What are the maximum temperature limits for this product?
It can handle intermittent temperatures up to 650°F (340°C) and continuous temperatures up to 600°F (315°C).
What machinery is this brake lining suitable for?
It is ideal for heavy-duty deck machinery including winches, windlasses, cranes, hoists, and drilling rigs.
Can I get a custom size for my specific equipment?
Yes, while standard rolls are 10 meters long, customized widths and thicknesses are available upon request.
Does this product meet international quality standards?
Yes, it is manufactured under ISO/TS16949 and ISO9001 certifications and tested according to SAE J661A standards.
