Factory Price Punching Piling Machine Repair Winch Clutch Lining, Piling Rig Machine Repair Services, Low Noise, Long Life Span Brake Pads

📊 Basic Information

Model NO.

TL2020

Position

Brake

Certification

ISO/TS16949, IATF-16949, ISO9001

Classification

Brake

Applying

Winch, Windlass

Coefficient

0.5-0.6

Lifespan

1 Year

Specification

140*14mm

HS Code

5910000000

Production Capacity

100, 000 Sets/Year

📦 Packaging & Delivery

Package Size

30.00cm * 20.00cm * 20.00cm

Package Gross Weight

20.000kg

Transport Package

Pallet

Main Market

Global Distribution

📝 Product Description

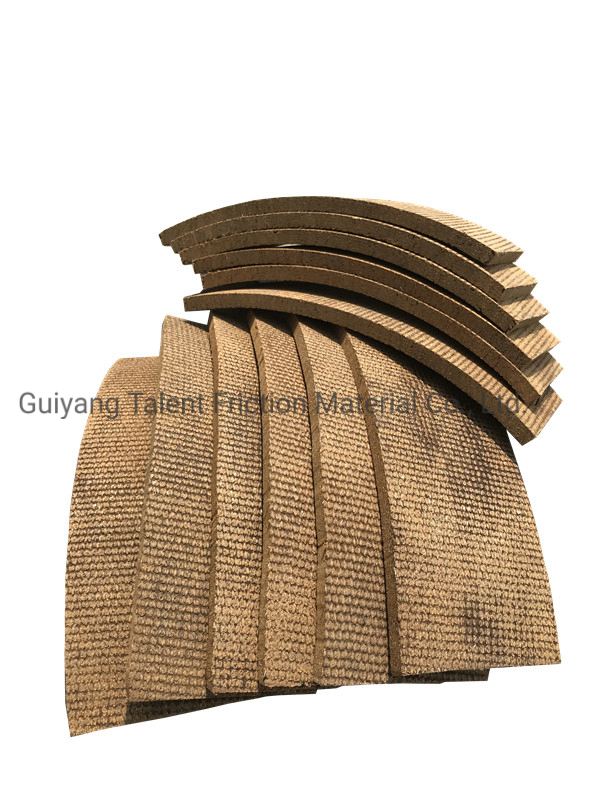

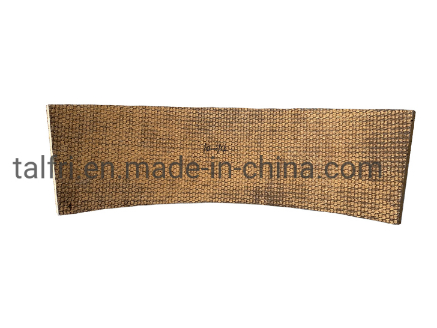

Non-Asbestos Woven Brake Lining Band TL2020

TL2020 is a semi-elastic non-asbestos brake band suitable for medium and heavy loads. It is manufactured from a variety of fiber mixed copper wires and impregnated with a special resin. This dense material provides outstanding heat resistance, abrasion resistance, and excellent stability under heavy load conditions.

Key Applications:

Marine Winches & Windlasses
Oil Rigs & Construction Machinery
Cranes & Elevators
Agricultural Vehicles
Rope Closing & Tamping Machines
Deck Machinery & Grab Dredgers

Size Specifications:

Width: Up to 510mm (20 inches)
Thickness: 3.2mm - 25.4mm (1/8 - 1 inch)
Standard Length: 10 Meters

Friction Performance (SAE J661 Standard):

Normal

0.47

Hot

0.49

400°F

0.47

Recommended Operating Limits:

Max Pressure: 250 psi
Max Friction Speed: 5000 ft/min
Max Intermittent Temp: 650°F (340°C)
Max Continuous Temp: 600°F (315°C)

🖼️ Product Showcase

❓ Frequently Asked Questions

Q1: What materials is the TL2020 brake lining made of? A: It is a non-asbestos woven lining made from a blend of fibers and copper wires, impregnated with a high-grade special resin for durability.

Q2: Can this brake lining be used in oily environments? A: Yes, it can be used in oil, though please note that the friction coefficient will be significantly lower compared to dry operating conditions.

Q3: What is the maximum temperature the lining can withstand? A: The TL2020 can handle intermittent temperatures up to 650°F (340°C) and continuous temperatures up to 600°F (315°C).

Q4: What industries typically use this specific brake lining? A: It is widely used in maritime (winches, windlasses) and industrial sectors including oil drilling, construction, and heavy machinery.

Q5: Is the material compatible with steel surfaces? A: Yes, the TL2020 is specifically designed to be suitable for the coupling surfaces of both cast iron and steel.

Q6: What certifications does the product meet? A: The production process is certified under ISO/TS16949, IATF-16949, and ISO9001 quality management standards.
