Hot Sale Piling Machine Clutch Lining, High Quality, Low Noise, Excellent Heat Resistance, for Construction Machinery, Construction Engineering

1 / 5

Hot Sale Piling Machine Clutch Lining, High Quality, Low Noise, Excellent Heat Resistance, for Construction Machinery, Construction Engineering

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

TL2020-S

Position

Clutch

Certification

ISO/TS16949, IATF-16949, ISO9001

Classification

Clutch

Main Market

North America, Southeast Asia, Western Europe

Application

Piling Machine Aftermarket

Coefficient

0.5-0.6

Dimension

180*14mm

Trademark

TALFRI

Origin

China

Production Capacity

10000 Piece/Year

Packaging & Delivery

Package Size

40.00cm * 40.00cm * 20.00cm

Package Gross Weight

30.000kg

Transport Package

Plastic File, Pallet

Product Description

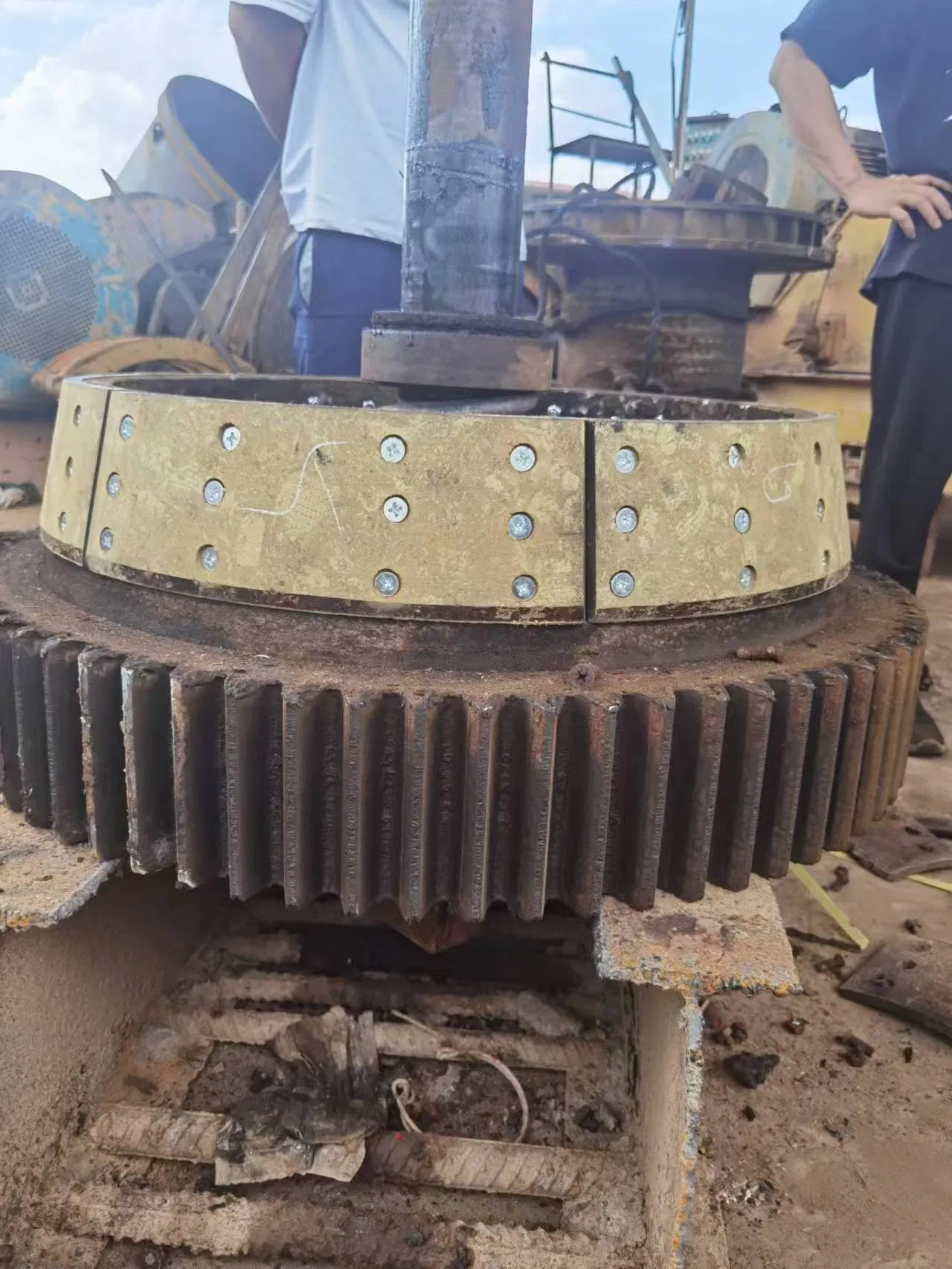

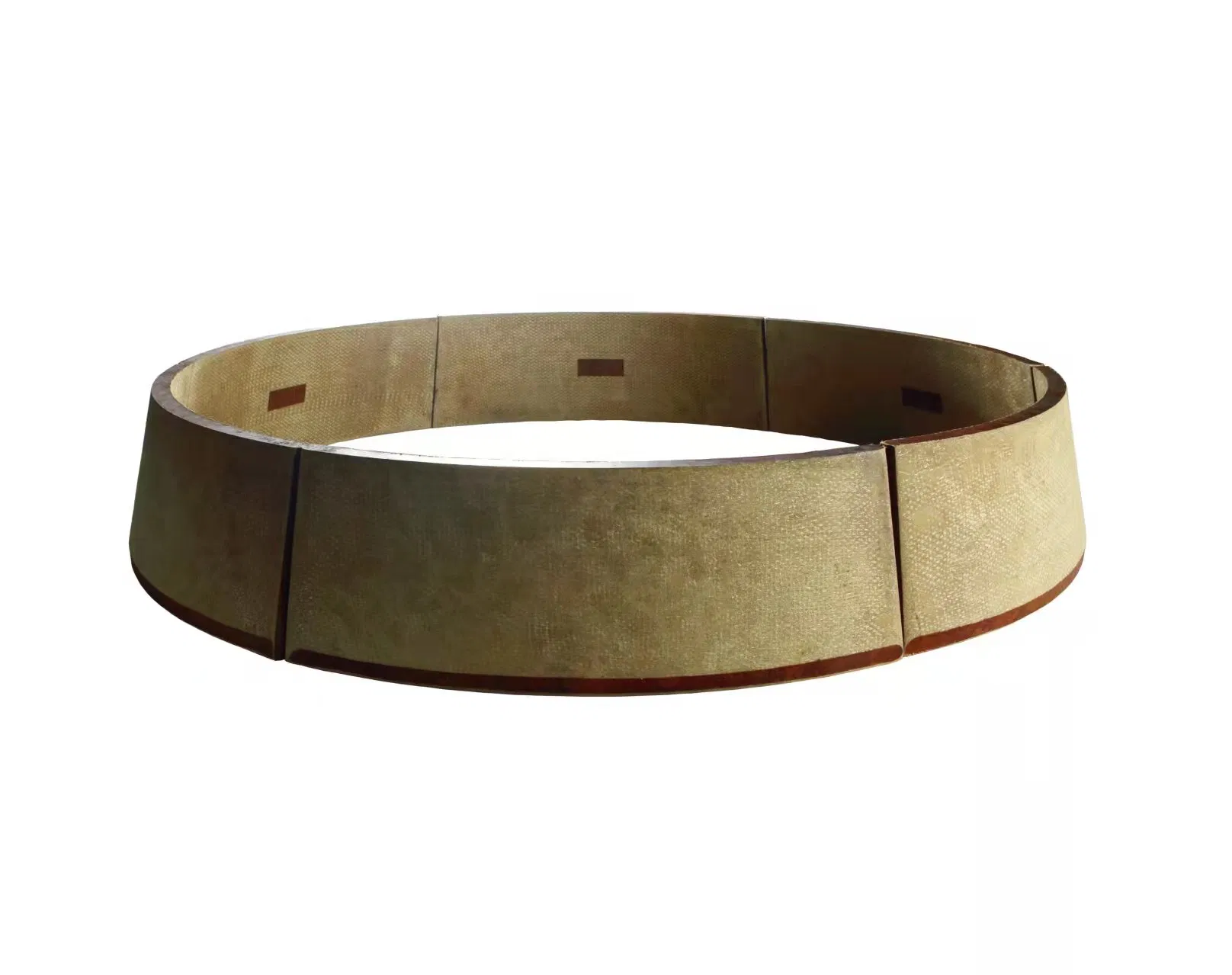

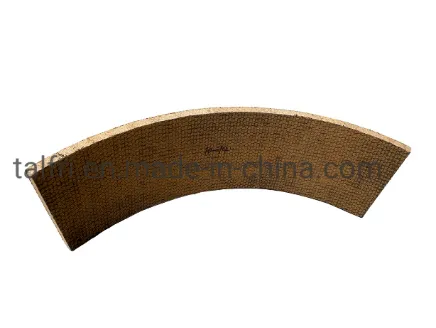

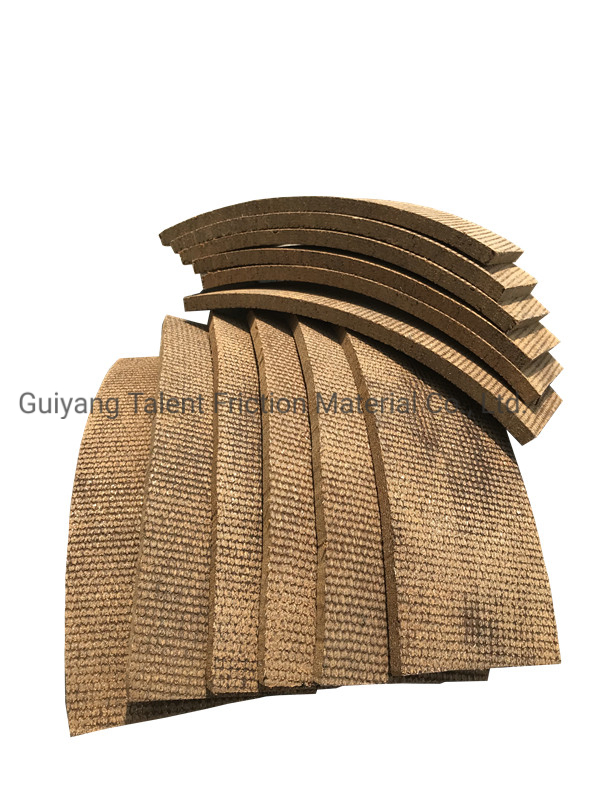

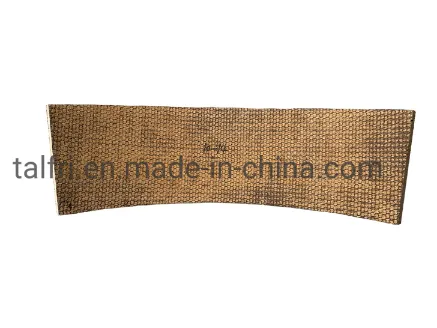

Non asbestos Woven Brake Lining TL2020-S is specifically designed for medium and heavy duty applications. As a moulded lining with arc, it is engineered for a perfect fit on piling machine clutches. Utilizing advanced production technology, this high-performance material is tested under the SAE J661A testing method standard, ensuring reliability and safety in demanding environments.

Key Applications

TL2020-S is compatible with cast iron and steel working surfaces. It is ideal for:

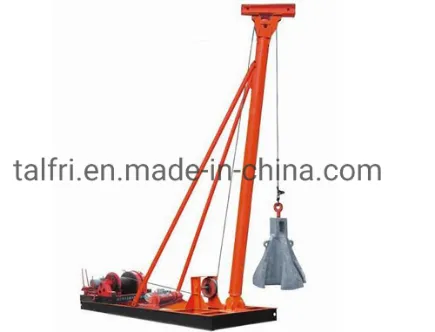

⚙️ Piling Machines

⚙️ Winches & Hoists

⚙️ Cranes & Windlasses

⚙️ Drilling Rigs

⚙️ Construction Machinery

Performance Features

✔️ Good Wear Resistance

✔️ Excellent Heat Resistance

✔️ High Tensile Strength

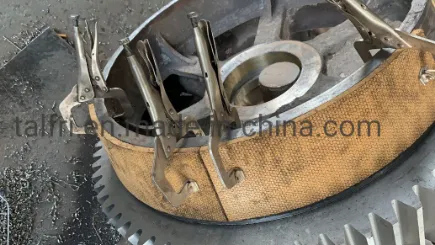

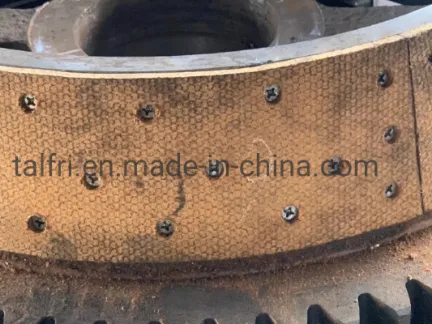

✔️ Suitable for Riveting

✔️ Low Noise Operation

Dimensions & Specifications

L382mm x T12.0mm x W130mm
L475mm x T14.0mm x W150mm
L553mm x T14.0mm x W150mm
Available in JK6, JK8, JK10 specifications

L382mm x T12.0mm x W130mm

L475mm x T14.0mm x W150mm

L553mm x T14.0mm x W150mm

Available in JK6, JK8, JK10 specifications

Recommended Operating Range

Max. Pressure:

250 psi

Max. Rubbing Speed:

5000 ft/min

Max. Intermittent Temp:

650°F (340°C)

Max. Continuous Temp:

600°F (315°C)

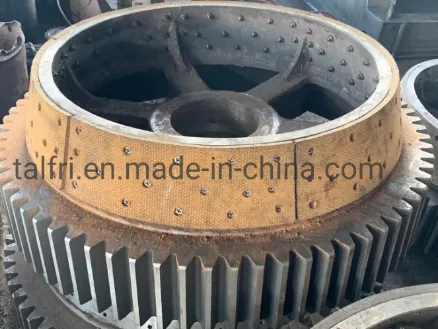

Product Visuals

Frequently Asked Questions

1. Is the TL2020-S brake lining asbestos-free? Yes, the TL2020-S is a non-asbestos woven brake lining, making it environmentally friendly and safer for operation.

2. What are the primary applications for this lining? It is primarily used for piling machine clutches, but it's also highly suitable for winches, cranes, hoists, and other heavy-duty construction machinery.

3. What temperature range can the TL2020-S withstand? It can handle a maximum continuous temperature of 600°F (315°C) and intermittent temperatures up to 650°F (340°C).

4. What is the friction coefficient of this material? The TL2020-S maintains a stable coefficient of friction between 0.5 and 0.6.

5. Does it provide quiet operation? Yes, one of the key features of the TL2020-S is its low-noise performance during engagement and operation.

6. Is it suitable for riveting? Absolutely. The material has high tensile strength and is specifically designed to be suitable for riveting to clutch and brake components.
