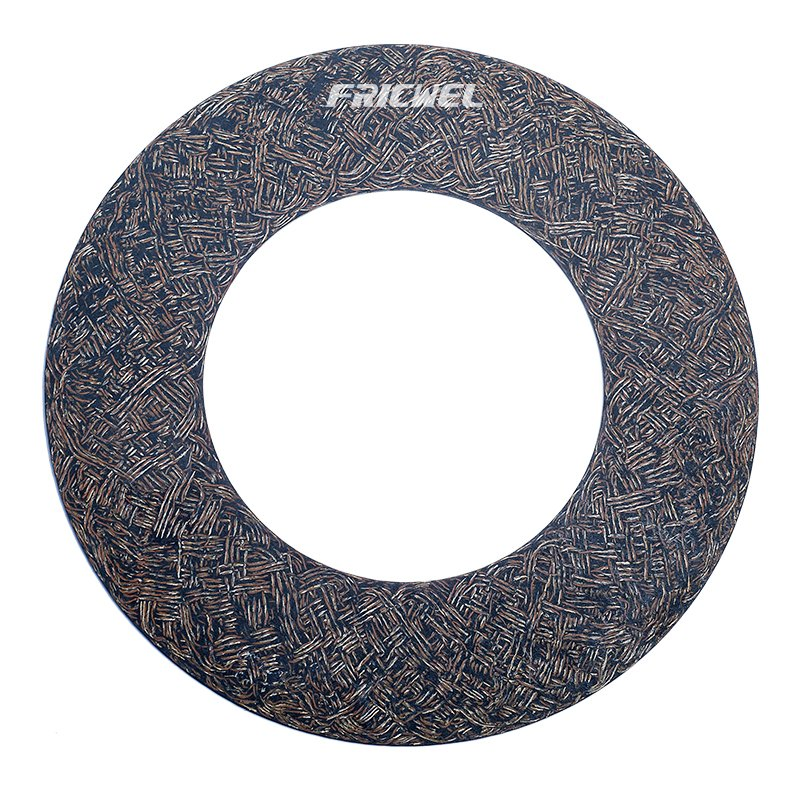

Agricultural Machinery Non Asbestos Parts Carbon Kevlar Factory Price Clutch Lining

📋

Overview & Basic Info

Model NO.

FW-026

Classification

Friction Clutch

Certification

ISO/TS16949:2002

Usage

Heavy Duty Trucks, Car, Racing Cars

Working Mode

Power Combining

Specility

More Copper, Low Wearing Rate

Transport Package

Carton+Pallet

Origin

China

Capacity

400,000 PCS/Month

Package Size

50.00cm * 50.00cm * 6.00cm

⚙️

Product Description

Products Performance & Advantages

●Clutch facing average coefficient of friction is 0.45-0.55, excellent anti-slippage property.
●Low wearing rate (0.05-0.15) ensuring a longer life time.
●Theory density for clutch lining is 2.0 g/cm3; actual density is 1.87 g/cm2.
●Hardness level HRL 50, suitable to prevent flywheel damage.
●Burst strength of 14000 r/m for φ200×130×3.5mm.
●Bending test results at 40 N/mm2.

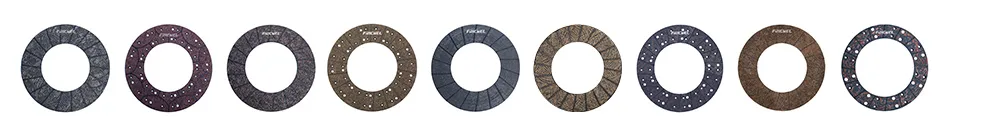

●Wide range of products available from ∅100mm to ∅440mm.
●Multiple materials: Glass fiber, covering yarn, high copper yarn, Kevlar fiber, and strong twisting yarn.
●Universal application: Heavy duty trucks, light trucks, passenger cars, racing cars, and tractors.

📏

Dimensions & Specifications

No.	O.D*I.D (MM)	Thickness (MM)	Grooves	No.	O.D*I.D (MM)	Thickness (MM)	Grooves
1	141*82	3.2-5.0	NO	21	260*167/170	3.2-5.0	18/27/30
2	145*105	3.2-5.0	NO	22	270*165/170	3.2-5.0	18
3	150*110	3.2-5.0	16	23	275*170/175/180	3.2-5.0	18/24/24*3
4	160*110	3.2-5.0	16-18	24	280*165/170	3.2-5.0	18/24
5	165*90	3.2-5.0	18	25	295*170/175/180	3.2-5.0	NO/18
11	200*130/135/140	3.2-5.0	NO/24/16*2	31	340*175	3.2-5.0	18
15	225*130/140/150/155	3.2-5.0	NO/18/24/16*2	35	380*190-250	3.2-5.0	NO/16/18/24
20	254*150/155	3.2-5.0	6*2/18/24	40	440*280	3.2-5.0	18

📸

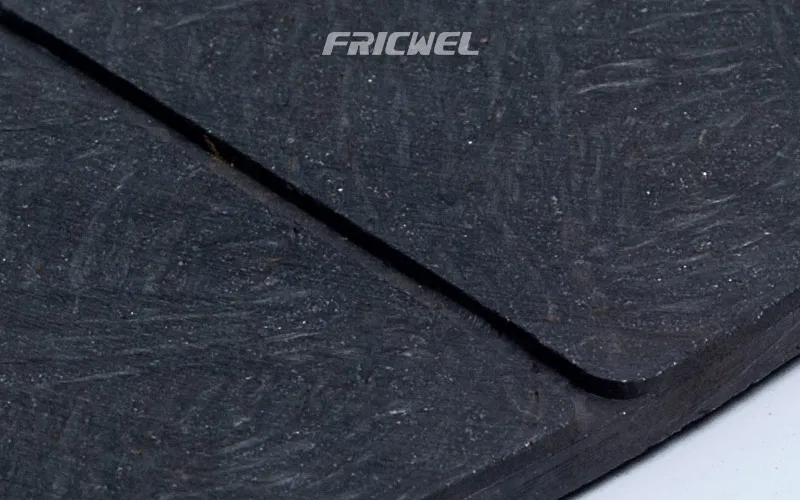

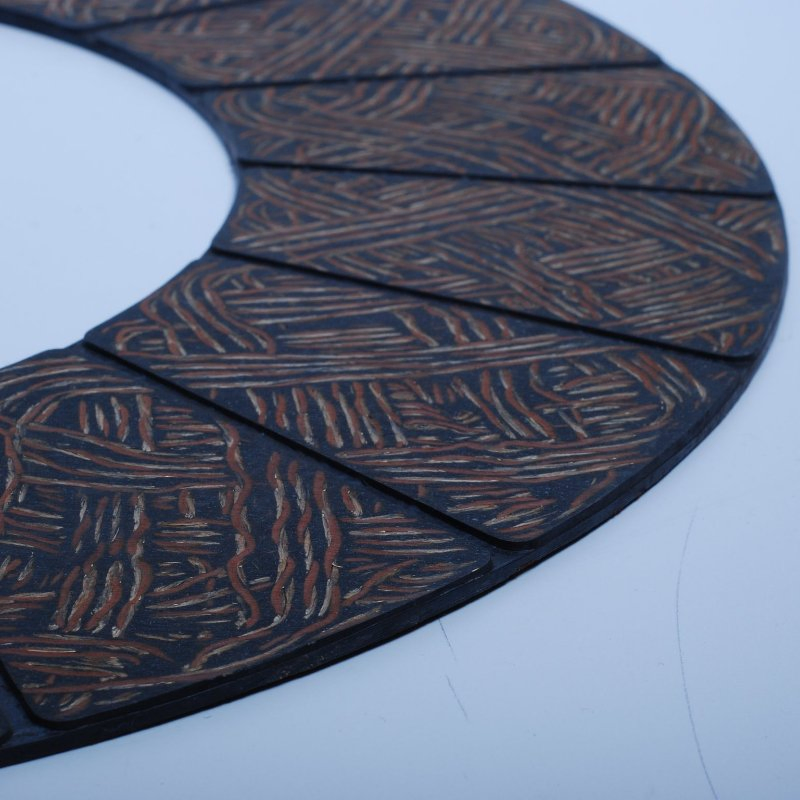

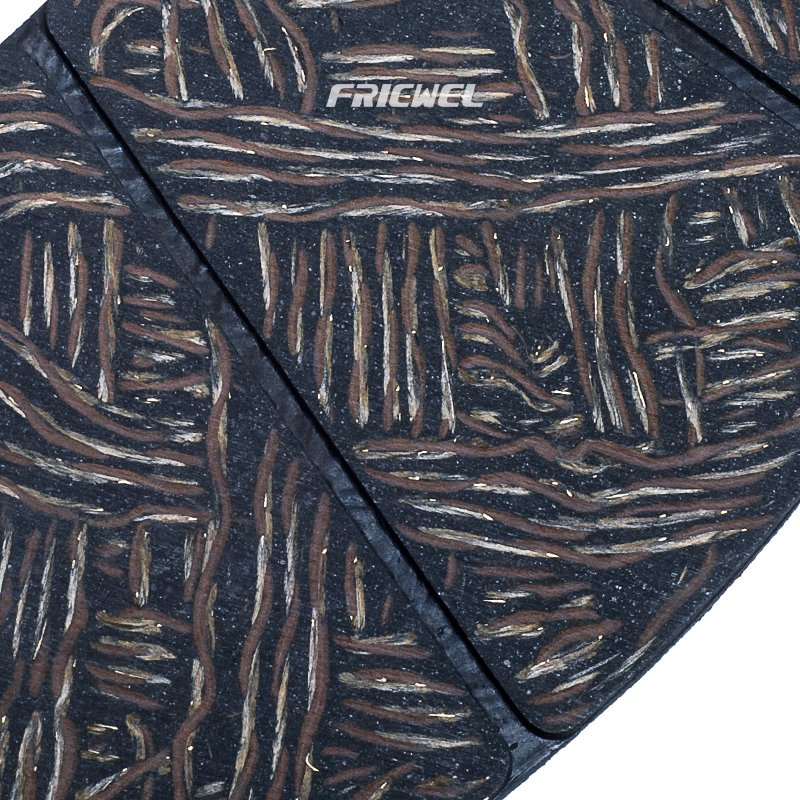

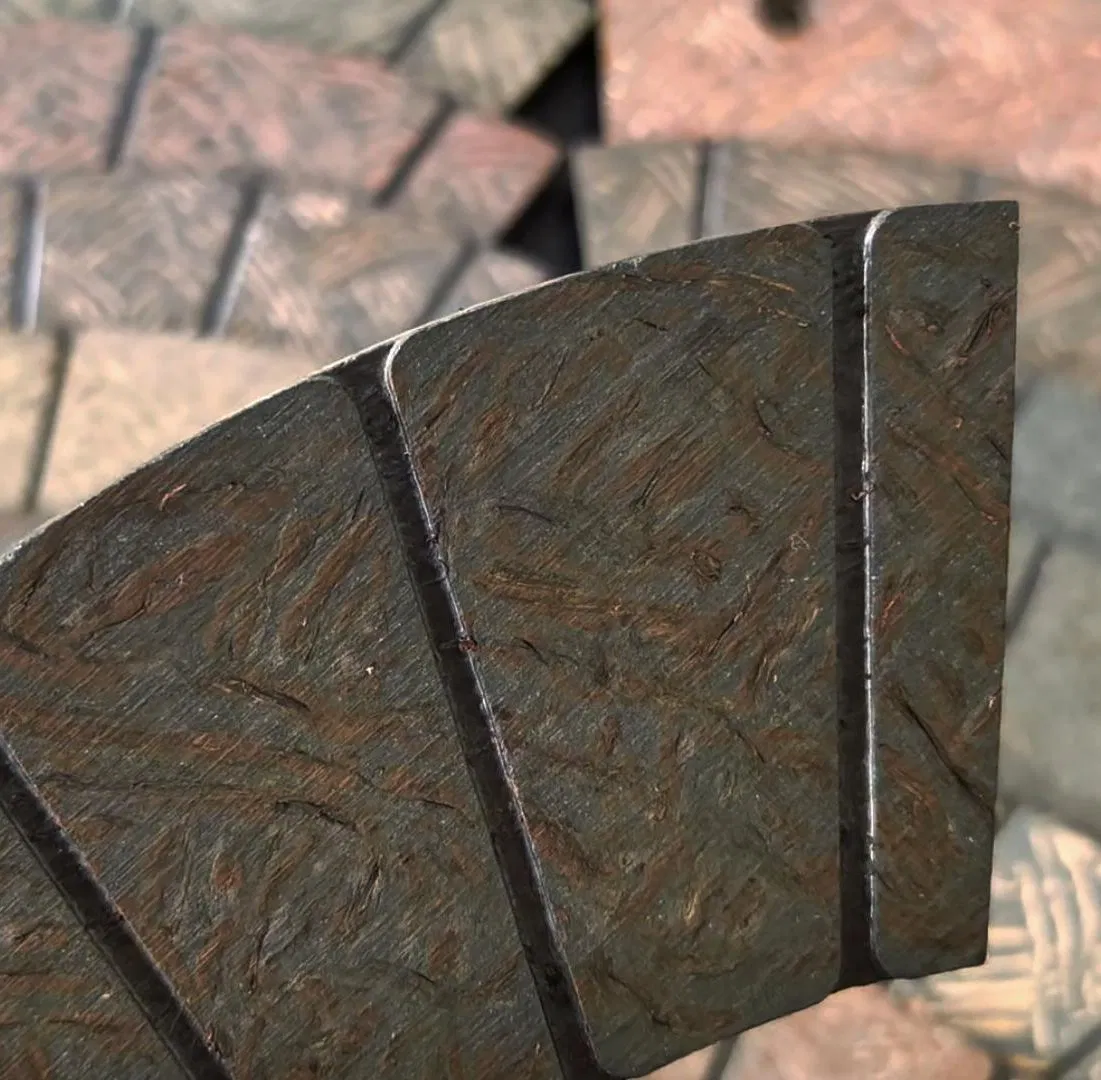

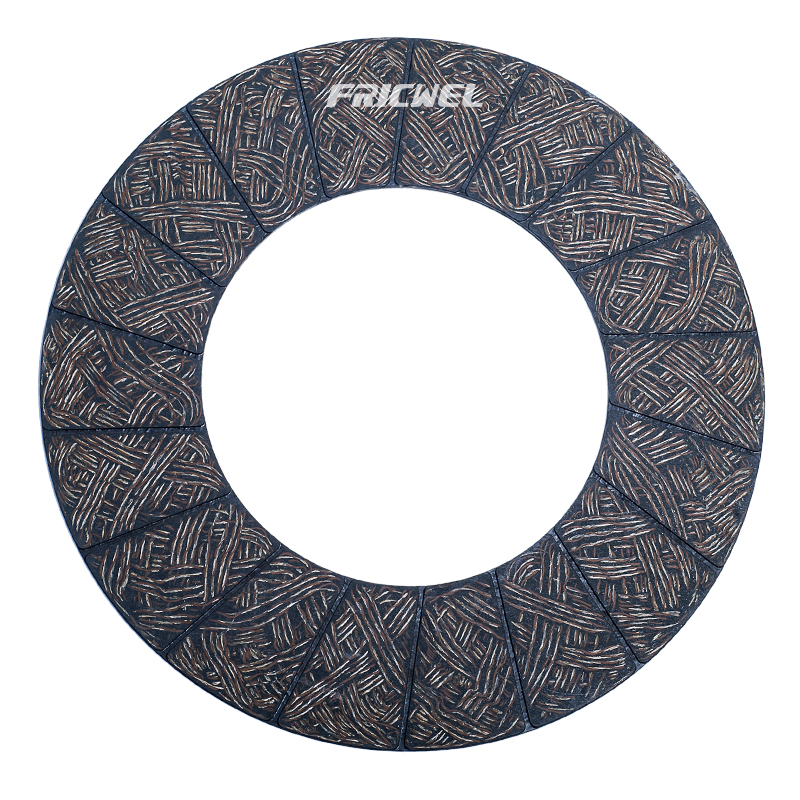

Detailed Photos

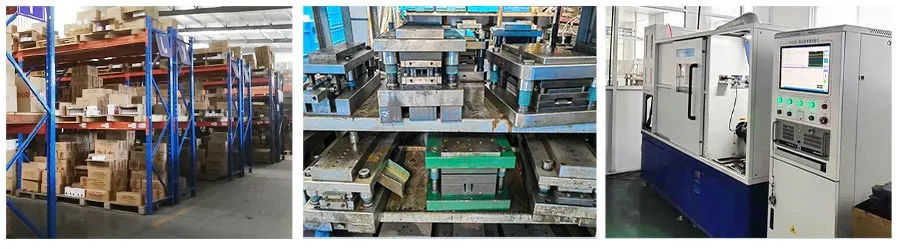

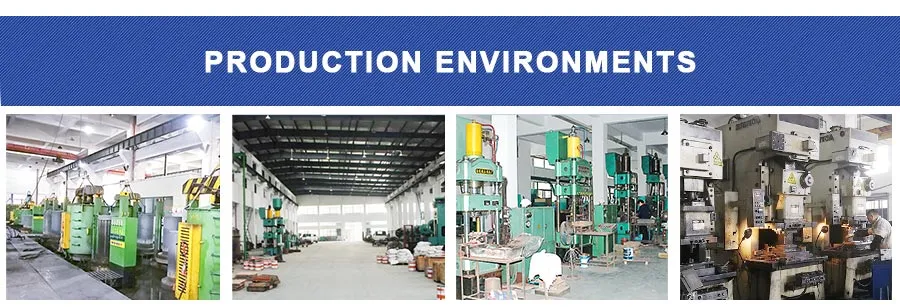

Production Environment

🏢

Company Profile

Founded in 1992, the factory covers an area of more than 20,000 square meters, with an annual output of about 1,000 tons. The main business is the production and sales of auto parts products, such as clutch facings, copper clutch buttons, friction discs, and related accessories. We are one of the earliest friction material manufacturers in China.

The facility has passed ISO9001 quality system certification and utilizes various advanced lathes and processing equipment, as well as engineering testing instruments, reaching a leading level in the domestic industry. Products are exported globally and are well-received by customers.
