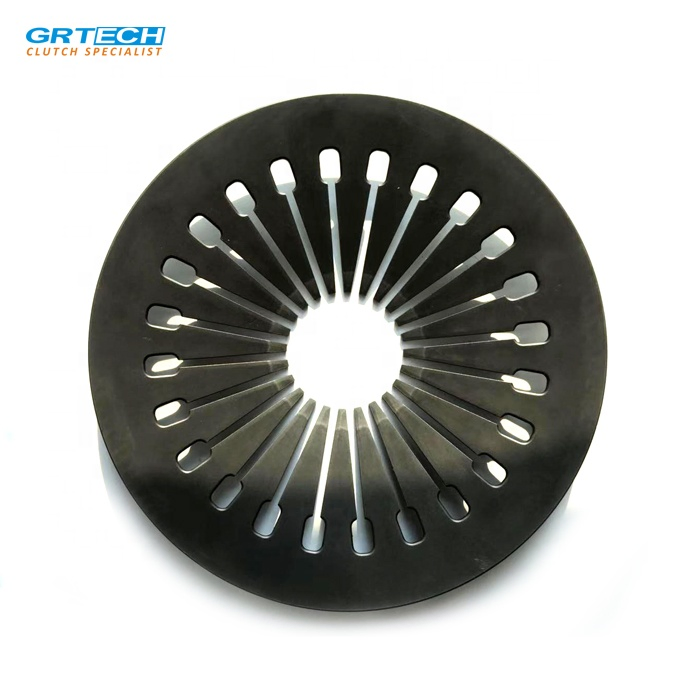

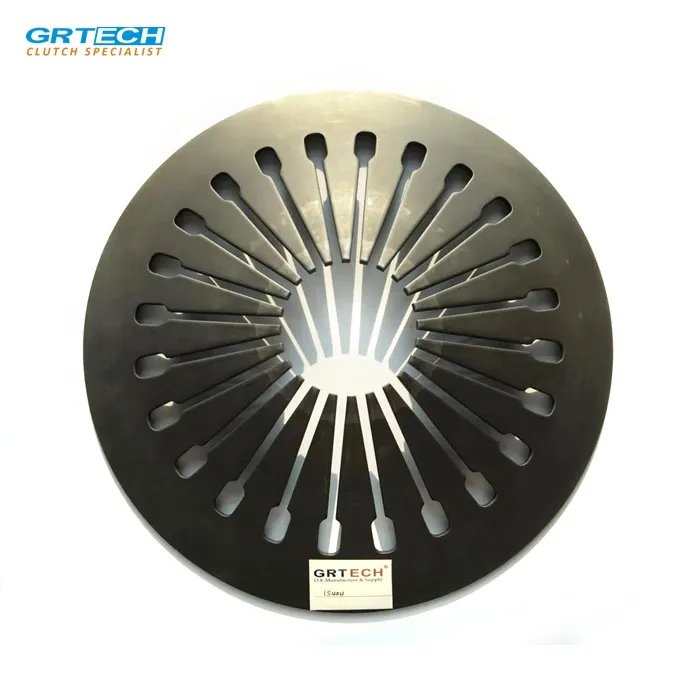

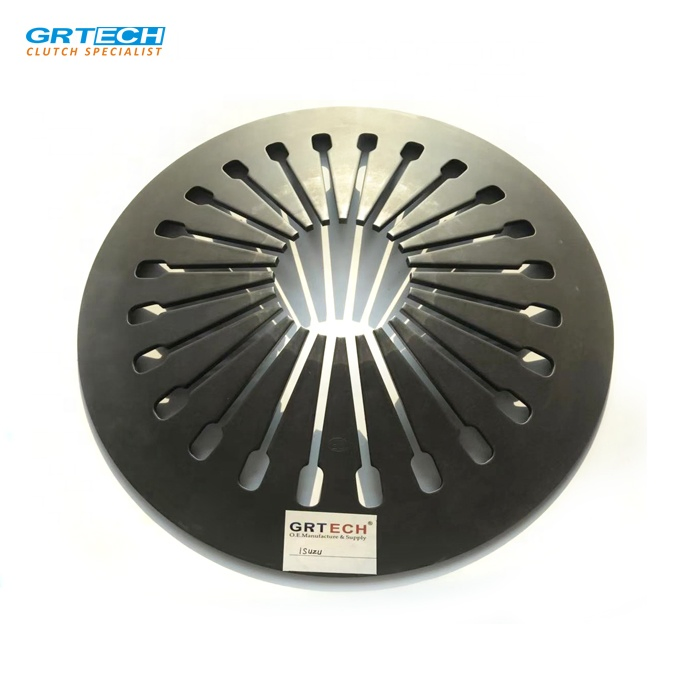

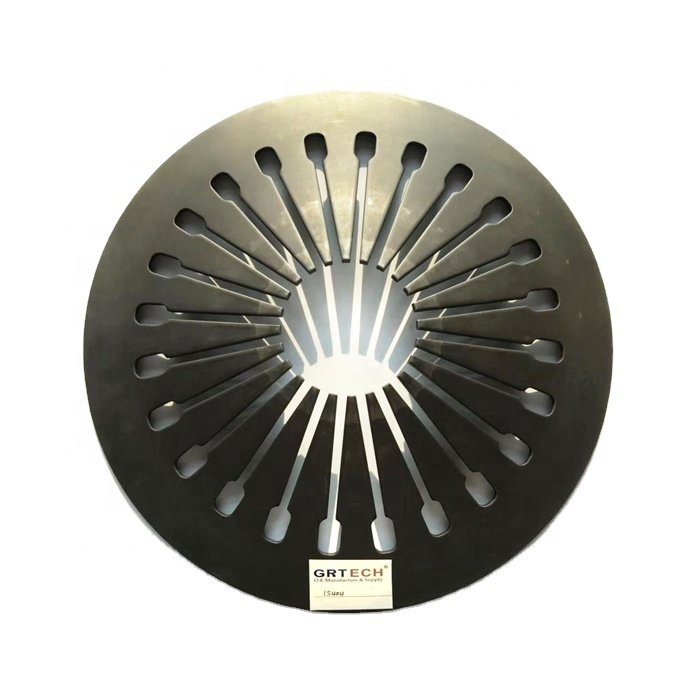

50CrV4 Steel Clutch Diaphragm Spring Factory
| Products and Supporting (Diaphragm Spring) | |
|---|---|
| Grade | 50CrV4, 51CrV4 |
| Specification | Diameter: ø160-430mm; Thickness: 1.8-5.8mm; Load: 3000-3600N |

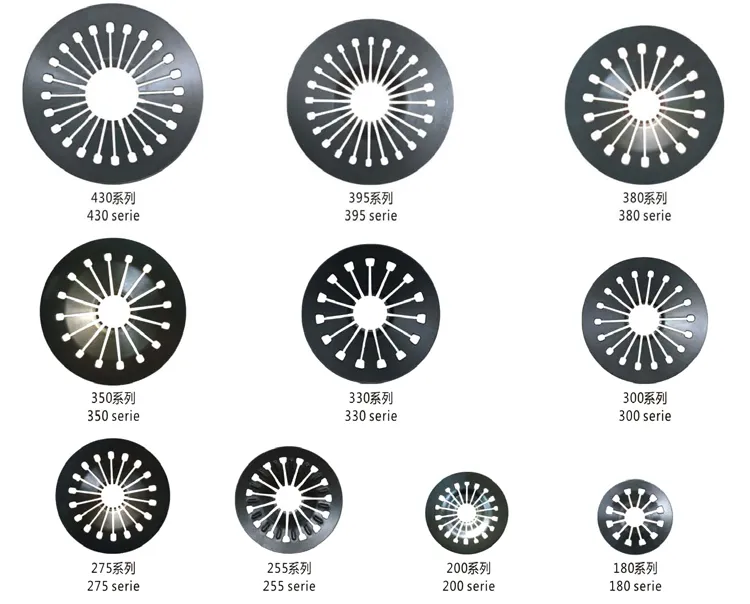

| Type | 180-430mm full series |
| Executive Standard | QC/T25-2004; QC/T27-2004 |
| Usage | Clutch pressure plate assembly for car, micro truck, light truck, medium truck, bus and heavy truck series |
| Products and Supporting (Driven Plate) | |
|---|---|
| Grade | 50CrV4, 65Mn, 08AI |
| Specification(mm) | Diameter: ø192-395mm; Thickness: 1.0-3.5mm |

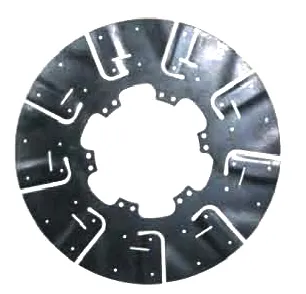

| Type | Wave sheet series, Driven disc series, Damping Disk Series, Damper series |
| Executive Standard | QC/T25-2004; QC/T27-2004 |
| Usage | Clutch driven plate series |
| Products and Supporting (Belleville Spring) | |
|---|---|
| Grade | 50CrV4, 51CrV4 |
| Specification(mm) | Diameter: ø152-355mm; Thickness: 2.2-4.40mm; Load: 3900-11600N |
| Type | 6inch, 8inch, 10inch, 14inch |
| Executive Standard | QC/T25-2004; QC/T27-2004 |
| Usage | Agricultural vehicles, corn machine clutch pressure plate assembly series |
Our group is specialized in developing and producing auto clutch parts including diaphragm springs, tractor belleville springs, and all kinds of internal-external gears for engineering machinery. We have exported to Europe, South America, Mid-east, and other regions, maintaining a high reputation in the global market through guaranteed high quality.
The diaphragm spring parts we supply serve famous domestic truck groups and numerous OEM factories overseas. We are capable of developing products according to your specific technical drawings and samples.
